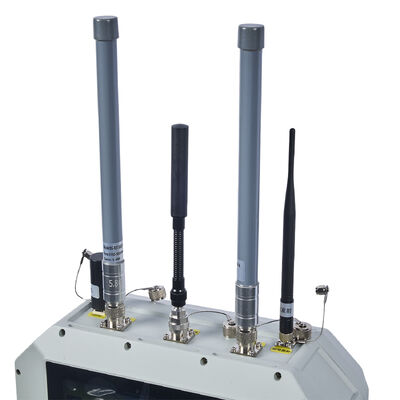

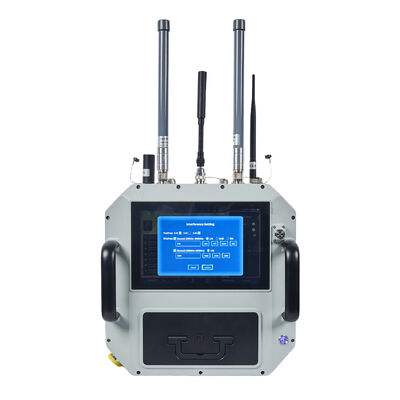

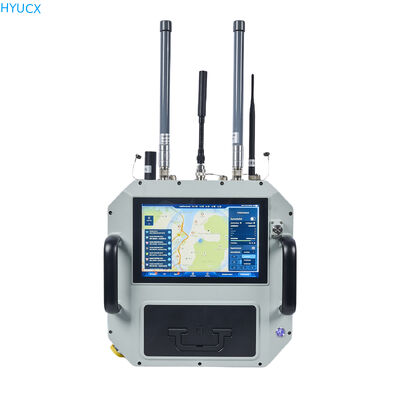

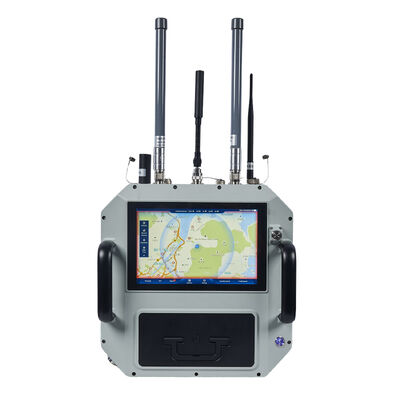

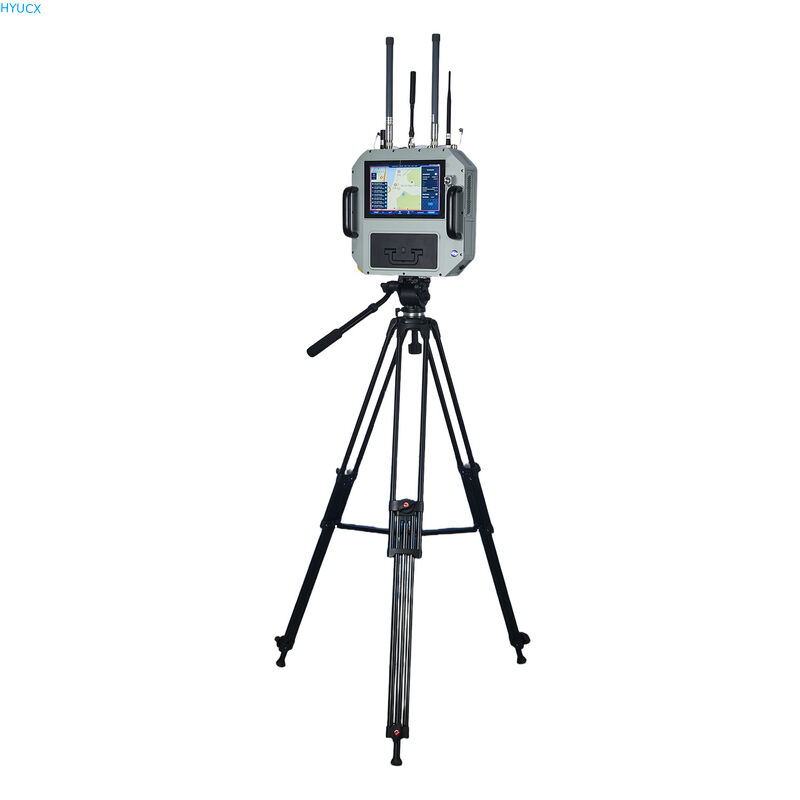

HB09 Drone Detection Drone Jamming Device 300MHz-6000MHz Drone Spoofing Device
Product Details
| Working: | Drone Detection, Jamming, GPS Deception | Detection Frequency Band: | 300MHz~6000MHz |
|---|---|---|---|
| Detection Range: | 3km | Positioning Distance: | 3km |
| Interference Distance: | 0.4km~2km | Systems That Support Deception: | GPS, GLONASS, BDS, GALILEO; |
| Deceptive Distance: | 0.5km~1km; | Weight: | 8kg |
| Size: | Length: (340±5) Mm; Width: (200±5) Mm; Height: (365±5) Mm | ||
| Highlight |
300MHz Drone Jamming device,6000MHz Drone Jamming device,300MHz drone spoofing device |
||
Product Description
| Number | Indicator Item | Description |
|---|---|---|
| 1 | Can detect and identify drone types | DJI series drones, racing drones, common consumer drones, DIY drones (TBS, ELRS) |
| 2 | Location-based drone models | Supports DJI series models |
| 3 | Detection frequency band | 300MHz~6000MHz |
| 4 | Detection range | 3km |
| 5 | Positioning distance | 3km |
| 6 | Simultaneously detect the number of targets | ≥35 |
| 7 | Positioning accuracy | 20 meters |
| 8 | Detection success rate | ≥99% |
| 9 | Interference frequency band | The stationary frequency bands are 2.4GHz, 5.2GHz, and 5.8GHz, with write interference ranging from 300MHz to 6000MHz; |
| 10 | Interference distance | 0.4km~2km |
| 11 | Systems that support deception | GPS, GLONASS, BDS, GALILEO; |
| 12 | Deceptive Distance | 0.5km~1km; |
| 13 | Blacklist and whitelist | Supports adding and deleting from the whitelist |
| 14 | Alarm methods | Sound and screen flashing alarms; |
| 15 | weight | 8kg |
| 16 | size | Length: (340±5) mm; Width: (200±5) mm; Height: (365±5) mm (excluding antenna) |
| 17 | Overall power consumption | Peak power ≤650W |
| 18 | Charging time | ≤1.5 hours |
| 19 | Battery life | Continuous detection for ≥6 hours, continuous interference for ≥40 minutes |
| 20 | Booting time | ≤20 seconds |
| 21 | Operating temperature | -25℃ to +70℃ |
| 22 | Protection level | IPx5 |
Product Highlights
HB09 Drone Detection Jamming GPS Deception Equipment, 300MHz~6000MHz Spectrum Detection 3km Range, 35+ Targets Simultaneous Detection, GPS/GLONASS/BDS/GALILEO Deception & 2.4/5.2/5.8GHz Jamming Device
