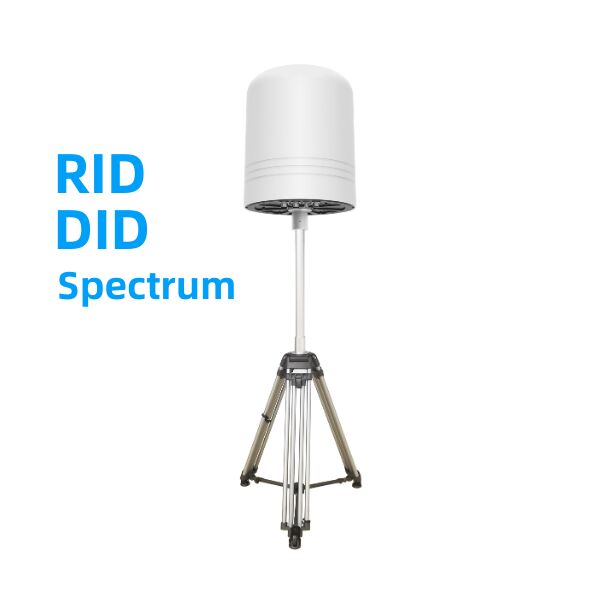

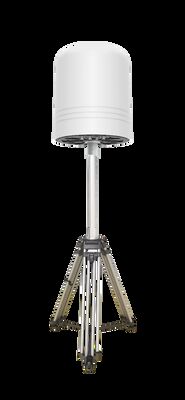

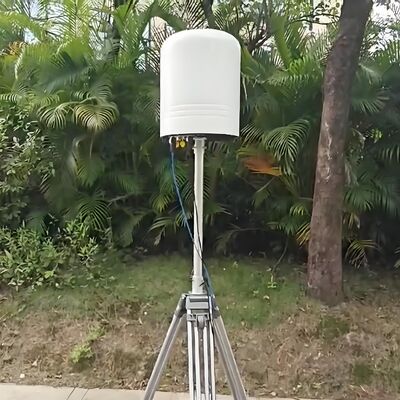

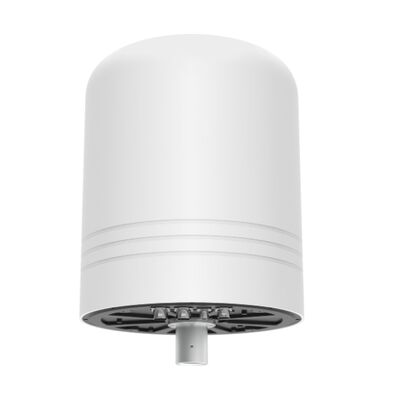

Interference Free Drone Detection System 3-10km Range High Performance Fpv Detector
Product Details
| Detection Method: | Spectrum + RID + DID | Detecting Distance: | 3-10km |
|---|---|---|---|
| Detection Frequency Band: | 100MHz～6GHz | Number Of Detection Targets: | ≥30 Sorties |
| Direction Finding Distance: | ≥3km | Detecting And Identifying Drone Models: | Common Brands Of Drones Such As DJI, Autel, Fimi, Dahua, And Yuneec, As Well As Most Domestically Produced Models Such As Walkthrough And WiFi Machines On The Market |
| Weight: | 15kg | Size: | 550*550*840mm |
| Packing Measurements: | 610*410*410mm | ||
| Highlight |
Interference Free Drone Detection System,10km Range Drone Detection System,10km Range anti drone system |
||
Product Description
The TQ01 is a drone detector with drone intrusion alarm, identification, direction-finding and networking location capabilities. One signal device detects and finds drone direction. Multiple TQ01s network to locate drones via TDOA (time difference of arrival) algorithm. It emits no signal which makes it interference-free and suitable for urban environment.
This product mainly consists of:
| Number | Name | Quantity | Unit |
|---|---|---|---|
| 1 | Device host | 1 | Pcs |
| 2 | AC adapter | 1 | Pcs |
| 3 | Internet cable | 1 | Pcs |
| 4 | Router | 1 | Pcs |
| 5 | Device bracket | 1 | Pcs |
- Drone positioning: Multiple TQ01s network to locate drone.
- Direction finding: A single station can provide direction finding for the target drone, and the electronic map presents real-time drone azimuth information. It can simultaneously detect at least 3 drones.
- Spectral scanning: 100MHz~6GHz spectral scanning, supporting display of spectrograms and waterfall plots.
- Abnormal signal identification: The system can identify abnormal signals based on the spectrum scanning results.
- Intrusion alarm: When the device detects a drone intrusion, it will sound or light an alarm.
- Detection and Jamming linkage: It can link jamming or deception devices to deal with targets.
- Scale networking: Support grid based deployment of multiple devices to meet large-scale coverage.
- Trajectory playback: Supports drone flight trajectory playback.
- Detection Record: The detection record list can retain historical detection records.
- Electronic map: Switching electronic maps, including Amap, Baidu, and Google (offline).
- Standard API interface: The device has an API interface that can upload data to a specified system.
- Integrated design: The equipment adopts an integrated design, which is easy to install.
- Full range of detection models: Capable of detecting and recognizing over 500 types of models.
- Direction finding distance: In open environments, the direction finding distance can reach over 4km.
- Passive detection: The equipment does not emit any electromagnetic signals.
- Continuous operation: 24/7 operation suitable for complex electromagnetic environments and harsh weather conditions.
| Number | Project | Parameter |
|---|---|---|
| 1 | Detection frequency band | 100MHz～6GHz |
| 2 | Detection distance | 1～10km |
| 3 | Number of detection targets | ≥30 sorties (meanwhile) |
| 4 | Detection mode | 360°Passive detection |
| 5 | Direction finding frequency band | 2GHz～6GHz |
| 6 | Direction finding distance | ≥3km |
| 7 | Number of direction finding targets | Not less than 3 sorties (meanwhile) |
| 8 | Directional accuracy | ～10° |
| 9 | DF refresh rate | 10-30 times/minute |
| 10 | Positioning accuracy | ≤20m |
| Number | Index | Parameter |
|---|---|---|
| 1 | Weight | ～15kg (Without power adapter) |

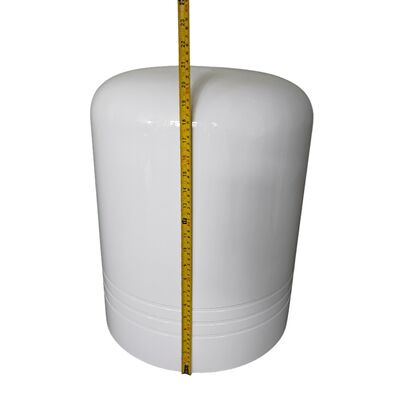

| 2 | Size | φ*H (420*530) ± 5mm |
| Number | Index | Parameter |
|---|---|---|
| 1 | Power dissipation | ≤50W |
| 2 | Supply voltage | AC 220V/DC 12V |
| Number | Index | Parameter |
|---|---|---|
| 1 | Working temperature | -40~65℃ |
| 2 | Protection level | IP65 |
- Full-directional Switching: By changing the antenna type, the switching function between omnidirectional countermeasures and directional countermeasures can be achieved.
- Multi-band Countermeasures: It can counteract the communication, video transmission, and navigation links of various unmanned aerial vehicles.
- Fast Response: The system response time is no more than 30 seconds.
- Low Failure Rate: The MTBF is not less than 1000 hours.
| NO. | Band | Power |
|---|---|---|
| CH1 | 430-450MHz | 50W (Gan) |
| CH2 | 860-940MHz | 50W (Gan) |
| CH3 | 1170-1280MHz | 50W (Gan) |
| CH4 | 1360-1450MHz | 50W (Gan) |
| CH5 | 1500-1620MHz | 50W (Gan) |
| CH6 | 2400-2500MHz | 100W (Gan) |
| CH7 | 5150-5350MHz | 100W (Gan) |
| CH8 | 5715-5860MHz | 100W (Gan) |
| Parameter | Value |
|---|---|
| Distance | ≤1-3km |
| Size | 350mm*190mm*490mm |
| Weight | 18kg |
| Power | 220V / 2.36A |
| Antenna | Quantity:8, length:<600mm |
| Power supply mode | AC110V-220V |
| System protection | Temperature protection, standing wave protection |
| Cooling system | Built-in intelligent cooling system |
| Charge mode | External 4A charger |
