50W Power Backpack Drone Jammer Advanced 8-12 Frequency Bands 30AH Battery
Product Details
| Power Consumption: | ≤800W | Efficiency: | ≥50% |
|---|---|---|---|
| Structural Dimensions: | 490*450*145mm | Machine Weight: | 18.75kg |
| Packing Size: | 46.5*43.5*75CM | Packaging Weight: | 35kg |
| External Control: | Controller Control | ||
| Highlight |
50W Backpack Drone Jammer,50W anti jamming device,Advanced Backpack Drone Jammer |
||
Product Description
Advanced anti-drone system customized for 8-12 frequency bands with 50W output power.
| Serial No. | Project | Operating Frequency | Output Power | Remark |
|---|---|---|---|---|
| 1 | Channel 1 | 400MHz～500MHz | 47dBm (50W) | Frequency can be customized |
| Channel 2 | 500MHz～600MHz | 47dBm (50W) | Frequency can be customized | |
| Channel 3 | 600MHz～800MHz | 47dBm (50W) | Frequency can be customized | |
| Channel 4 | 800MHz～1050MHz | 47dBm (50W) | Frequency can be customized | |
| Channel 5 | 1550MHz～1620MHz | 47dBm (50W) | Frequency can be customized | |
| Channel 6 | 5150MHz～5300MHz | 47dBm (50W) | Frequency can be customized | |
| Channel 7 | 2400MHz～2500MHz | 47dBm (50W) | Frequency can be customized | |
| Channel 8 | 5725MHz～5850MHz | 47dBm (50W) | Frequency can be customized | |

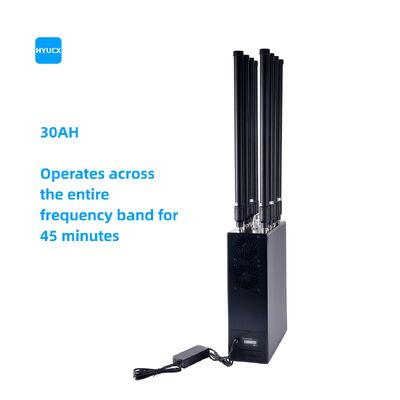

| 2 | Battery capacity and working time | 30AH full frequency band working 45min (Portable backpack) | ||
| 3 | Power consumption | ≤800W | ||
| 4 | Efficiency | ≥50% | ||
| 5 | Structural dimensions | 490*450*145mm | ||
| 7 | Machine weight | 18.75kg | ||
| 8 | Packing size | 46.5*43.5*75CM | ||
| 9 | Packaging weight | 35kg | ||

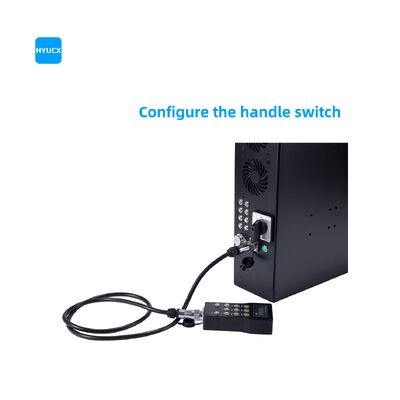

| 10 | External Control | Controller control | ||
| 11 | Interface type |

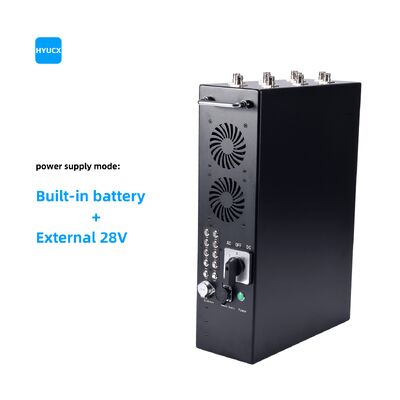

Power interface: Aviation socket WS20-2
RF interface: NJ impedance 50 ohms
|
||
| 12 | Antenna |

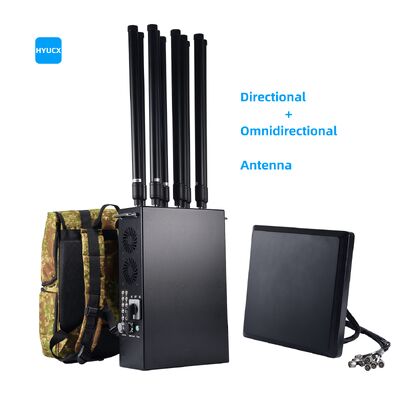

Type: Omnidirectional fiberglass antenna + flat directional antenna
Gain: 3±1dBi
|
||
| 15 | Power capacity | 100W | ||
- Customers can customize the frequency and power of each frequency band

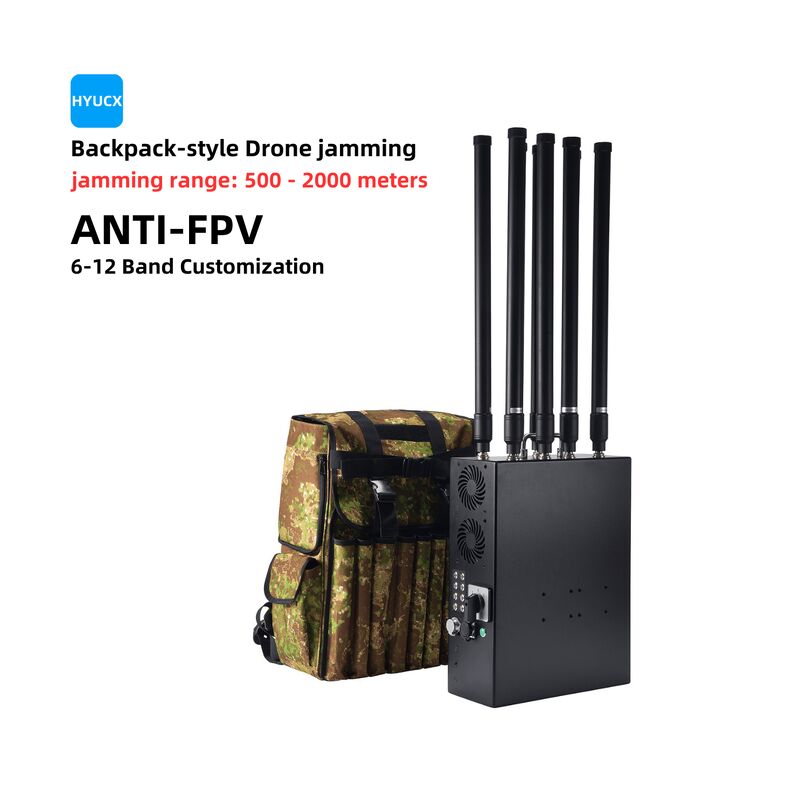

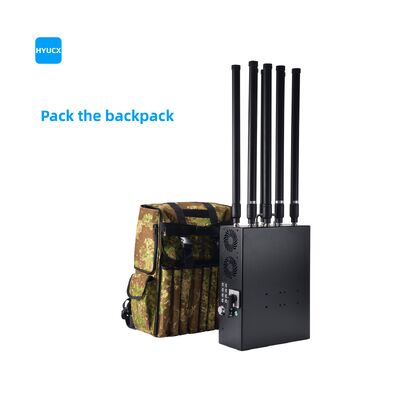

- Available in 6-channel, 10-channel, and 12-channel sheet metal backpack configurations
