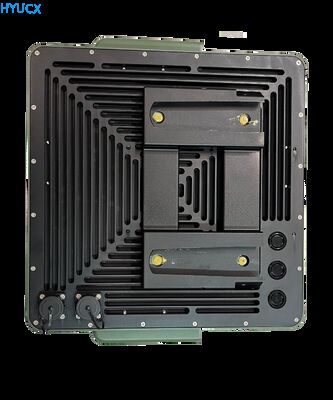

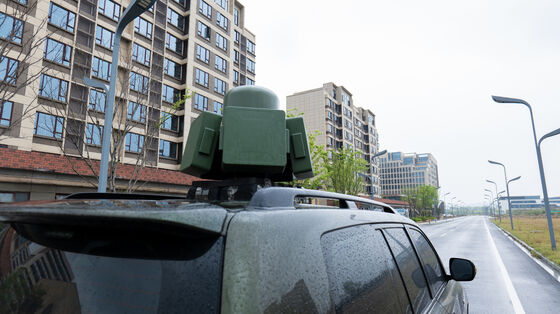

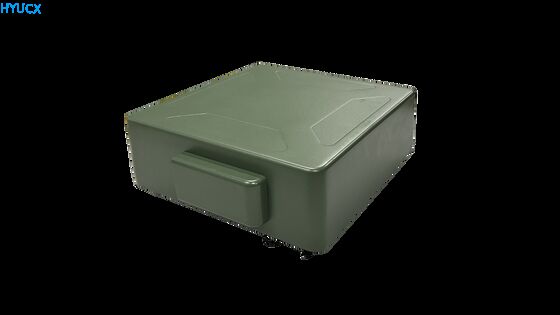

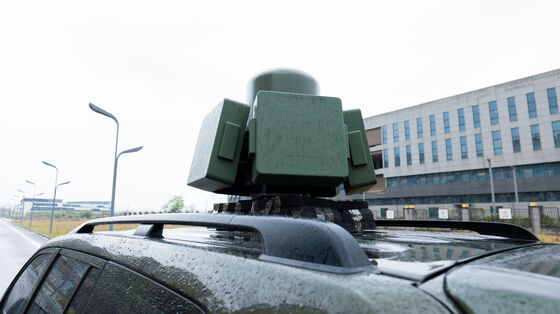

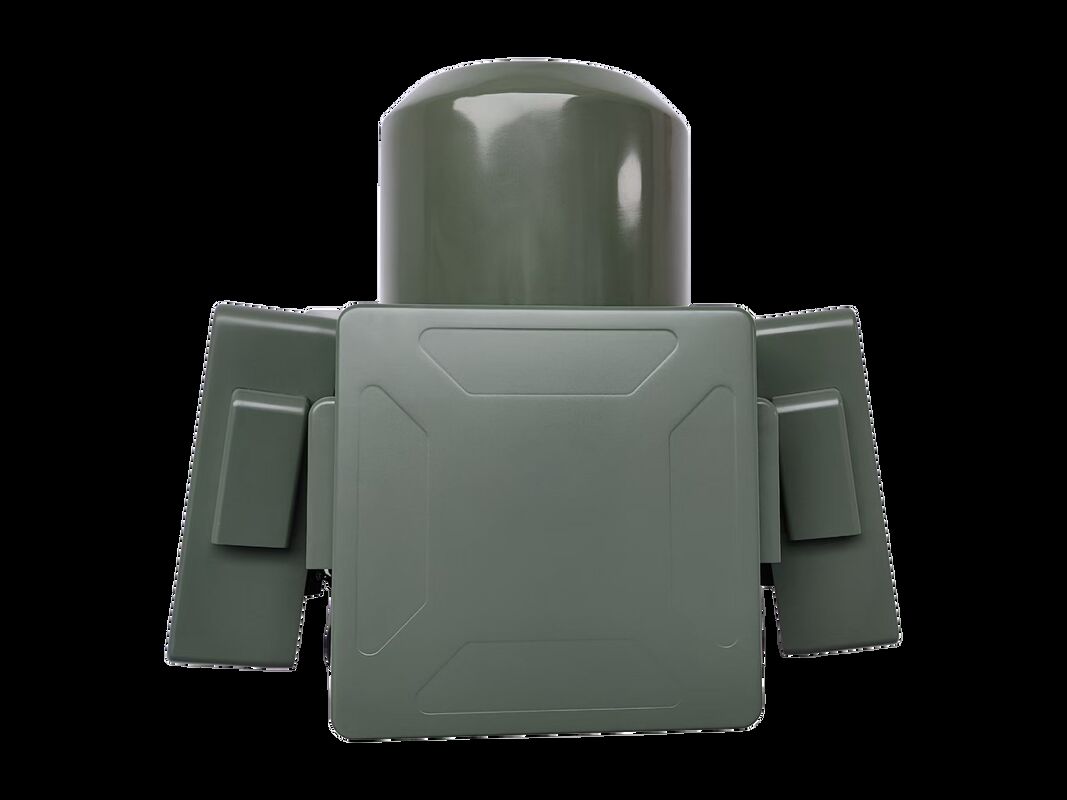

Vehicle Mounted Drone Signal Jammer Integrated 300MHz-6GHz Frequency
Product Details
| Detection Radius: | 5km | Detection Frequency: | 300MHz~6GHz |
|---|---|---|---|
| Jamming Range: | Horizontal: 360°; Vertical: -90° To +90°. | Jamming Frequency Bands: | 900M/1.2GHz/1.5GHz/2.4GHz/5.2GHz/5.8GHz |
| Jamming Module: | Four Or Five Directional Frequency Bands With Six Channels For Jamming | Detection Method: | Spectrum+Drone+RemoteID |
| Highlight |
Vehicle Mounted Drone Signal Jammer,Vehicle Mounted Drone Jamming System,Integrated Drone Signal Jammer |
||
Product Description
The vehicle-mounted integrated drone detection and countermeasure system is a comprehensive security solution that combines drone detection, identification, and countermeasure capabilities. It is specifically designed to address the increasingly complex threats posed by drones. The system can detect drone activity in the surrounding airspace in real-time, quickly identify the type and flight path of the drone, and effectively suppress illegal intrusion or malicious activities through multiple countermeasures, ensuring the security of critical areas or events.
| No. | Name | Performance Indicators. |
|---|---|---|
| 1 | Detection Mode | Passive detection, does not actively emit radio signals in detection mode |
| 2 | Detection Frequency | 300MHz~6GHz |
| 3 | Detection Angle | Horizontal 0°~360°, vertical -90°~90° |
| 4 | Detection Altitude | 0～1200m |
| 5 | Detection Radius | 5km(subject to variation depending on environment and drone model) |
| 6 | Detection Time | ≤5s |
| 7 | Detection Power Consumption | ≤100W |
| 8 | Jamming Distance | 3km(subject to variation depending on environment and drone model) |
| 9 | Jamming Angle Selection | Allows independent on/off control for multiple angles |
| 10 | Jamming Range | Horizontal: 360°; vertical: -90° to +90°. |
| 11 | Jamming Frequency Bands | 900M/1.2GHz/1.5GHz/2.4GHz/5.2GHz/5.8GHz |
| 12 | Operating Frequency |
Channel 1: (840±15) MHz to (930±15) MHz Channel 2: (1535±15) MHz to (1635±15) MHz Channel 3: (2380±15) MHz to (2520±15) MHz Channel 4: (5130±15) MHz to (5370±15) MHz Channel 5: (5725±15) MHz to (5885±15) MHz Channel 6: (1080±15) MHz to (1200±15) MHz |
| 13 | Transmission Power |
Channel 1: (47±3) dBm Channel 2: (44±3) dBm Channel 3: (47±3) dBm Channel 4: (44±3) dBm Channel 5: (47±3) dBm Channel 6: (44±3) dBm |
| 14 | Jamming Response Time | ≤3s |
| 15 | Suppression Distance Ratio | The maximum distance ratio between the system and the drone versus the drone and its controller should be no less than 15:1 in the absence of significant electromagnetic interference |
| 16 | Total Power Consumption | ≤2300W |
| 17 | Mobile Power Supply | Mobile power supply; in full-frequency transmission mode, continuous operation for ≥30 minutes |
| 18 | Power Supply Mode | Supports 220V AC power or mobile power supply |
| 19 | High-Speed Operation | Capable of detecting and countering drones while in high-speed motion |
| 20 | Map Positioning | Equipped with an electronic map that can display the system’s geographic location in real-time |
| 21 | Alarm Function | Provides alarm notifications via information, sound, and light upon drone detection |
| 22 | Operating Temperature | (-20~+60)±2℃ |
| 23 | Storage Temperature | (-60~+85)±2℃ |
| 24 | Equipment Weight | 64.25kg |
By jamming the drone's remote control, data transmission, video transmission, and navigation signals, the system aims to cause the drone to lose control and force an emergency landing.
- 360° Full-Frequency Detection and Jamming: Covers mainstream drone models, operates autonomously, and provides all-around, multi-angle detection and countermeasures.
- Structured Design: Components are quickly detachable, supporting vehicle-mounted, fixed, and portable operational modes.
- Strong Stability: Features a low wind resistance design to maintain stability and safety even at high speeds.
- Blacklist/Whitelist: Allows one-click marking of black and white lists, with whitelisted drones not affected by interference.
- Strong Expandability: Supports flexible deployment on various vehicle types, allowing for both standalone operation and multi-device networking.
- Military-Grade Quality: Withstands extreme temperatures, offering strong environmental adaptability.
- Customized Services: Tailored intelligent solutions based on specific needs to provide clients with optimal defense performance.
The vehicle-mounted drone detection and jamming system consists of detection unit, interference unit, control unit, power supply component, etc..
