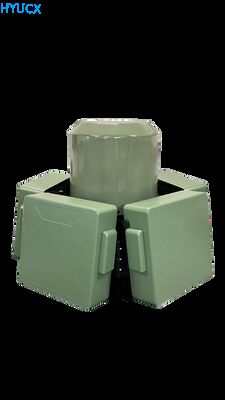

Long Distance Vehicle Drone Jammer 300MHz-6GHz Comprehensive Security Solution
Product Details
| Detection Mode: | Passive Detection, Does Not Actively Emit Radio Signals In Detection Mode | Detection Frequency: | 300MHz~6GHz |
|---|---|---|---|
| Detection Angle: | Horizontal 0°~360°, Vertical -90°~90° | Detection Altitude: | 0～1200m |
| Jamming Distance: | 3km | Jamming Angle Selection: | Allows Independent On/off Control For Multiple Angles |
| Highlight |
300MHz Vehicle Drone Jammer,Long Distance Vehicle Drone Jammer,Long Distance car jamming device |
||
Product Description

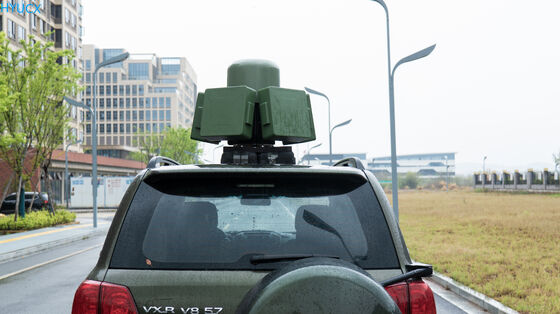

The vehicle-mounted integrated drone detection and countermeasure system is designed for drone detection, identification, and counteraction. The system integrates multiple technologies such as radio detection, protocol decoding, and spectrum scanning. By utilizing the characteristic signals received from drones, it enables detection and identification of unauthorized drones. Through radio interference and jamming technology, the system provides low-altitude security protection for surrounding convoys within a 3km radius, even at high speeds of up to 150 km/h.
The vehicle-mounted integrated drone detection and countermeasure system is a comprehensive security solution that combines drone detection, identification, and countermeasure capabilities. It is specifically designed to address the increasingly complex threats posed by drones. The system can detect drone activity in the surrounding airspace in real-time, quickly identify the type and flight path of the drone, and effectively suppress illegal intrusion or malicious activities through multiple countermeasures, ensuring the security of critical areas or events.
| No. | Name | Performance Indicators. |
|---|---|---|
| 1 | Detection Mode | Passive detection, does not actively emit radio signals in detection mode |
| 2 | Detection Frequency | 300MHz~6GHz |
| 3 | Detection Angle | Horizontal 0°~360°, vertical -90°~90° |
| 4 | Detection Altitude | 0～1200m |
| 5 | Detection Radius | 5km(subject to variation depending on environment and drone model) |
| 6 | Detection Time | ≤5s |
| 7 | Detection Power Consumption | ≤100W |
| 8 | Jamming Distance | 3km(subject to variation depending on environment and drone model) |
| 9 | Jamming Angle Selection | Allows independent on/off control for multiple angles |
| 10 | Jamming Range | Horizontal: 360°; vertical: -90° to +90°. |
| 11 | Jamming Frequency Bands | 900M/1.2GHz/1.5GHz/2.4GHz/5.2GHz/5.8GHz |
| 12 | Operating Frequency |
Channel 1: (840±15) MHz to (930±15) MHz Channel 2: (1535±15) MHz to (1635±15) MHz Channel 3: (2380±15) MHz to (2520±15) MHz Channel 4: (5130±15) MHz to (5370±15) MHz Channel 5: (5725±15) MHz to (5885±15) MHz Channel 6: (1080±15) MHz to (1200±15) MHz |
| 13 | Transmission Power |
Channel 1: (47±3) dBm Channel 2: (44±3) dBm Channel 3: (47±3) dBm Channel 4: (44±3) dBm Channel 5: (47±3) dBm Channel 6: (44±3) dBm |
| 14 | Jamming Response Time | ≤3s |
| 15 | Suppression Distance Ratio | The maximum distance ratio between the system and the drone versus the drone and its controller should be no less than 15:1 in the absence of significant electromagnetic interference |
| 16 | Total Power Consumption | ≤2300W |
| 17 | Mobile Power Supply | Mobile power supply; in full-frequency transmission mode, continuous operation for ≥30 minutes |
| 18 | Power Supply Mode | Supports 220V AC power or mobile power supply |
| 19 | High-Speed Operation | Capable of detecting and countering drones while in high-speed motion |
| 20 | Map Positioning | Equipped with an electronic map that can display the system’s geographic location in real-time |
| 21 | Alarm Function | Provides alarm notifications via information, sound, and light upon drone detection |
| 22 | Operating Temperature | (-20~+60)±2℃ |
| 23 | Storage Temperature | (-60~+85)±2℃ |
| 24 | Equipment Weight | 64.25kg |
Product Highlights
