50W Handheld Drone Jammer 2400MHz-2500MHz Multi Band Weather Resistant
Product Details
| Channel 1: | 47dBm (50W)Band Selection Is Available | Channel 2: | 47dBm (50W)Band Selection Is Available |
|---|---|---|---|
| Supply Voltage: | DC: +12V～+28V (battery Optional) | Power Consumption: | ≤200W |
| Outer Box Size: | 250*110*54mm | Weight: | <4kg |
| Gain: | 3±1dBi | Power Capacity: | 100W |
| Highlight |
50W Handheld Drone Jammer,50W handheld uav jammer,Multi Band Handheld Drone Jammer |
||
Product Description
Professional anti-drone handheld device designed for security and defense applications.
| Serial No. | Project | Operating Frequency | Output Power |
|---|---|---|---|
| 1 | Channel 1 | 2400MHz～2500MHz | 47dBm (50W) |
| Channel 2 | 5725MHz～5850MHz | 47dBm (50W) | |
| 2 | Supply Voltage | DC: +12V～+28V (battery optional) | |
| 3 | Power Consumption | ≤200W | |
| 4 | Efficiency | ≥50% | |
| 5 | Outer Box Size | 250*110*54mm | |
| 7 | Weight | <4kg | |
| 8 | Interface Type |

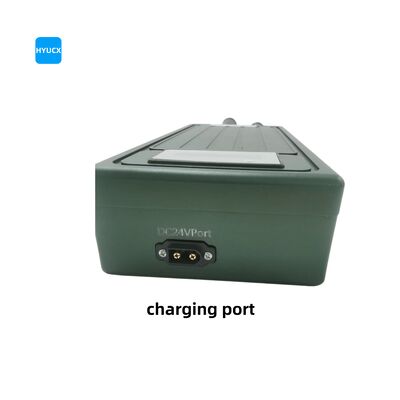

Power Interface: Aviation socket WS20-2

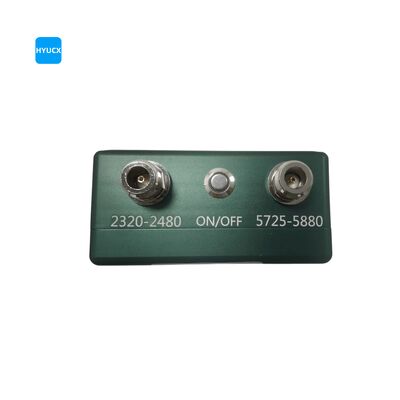

RF Interface: NJ impedance 50 ohms
|
|

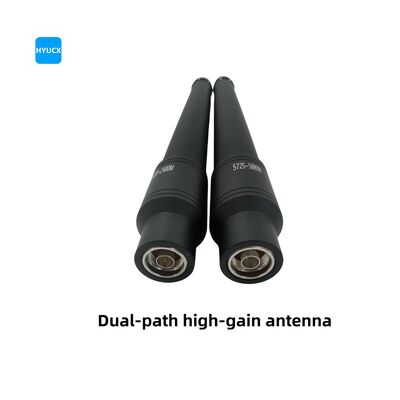

| 9 | Antenna Type | Omnidirectional fiberglass spring antenna | |
| 10 | Gain | 3±1dBi | |
| 11 | Power Capacity | 100W | |
Product Highlights
Handheld Drone Jamming Equipment Professional anti-drone handheld device designed for security and defense applications. Technical Specifications Serial No. Project Operating Frequency Output Power 1 Channel 1 2400MHz～2500MHz 47dBm (50W) Channel 2 5725MHz～5850MHz 47dBm (50W) 2 Supply Voltage DC: ...
