Rainproof Handheld Drone Detector Early Warning With 6 Inch Screen 8000mAh Battery

Brand Name: HYUCX
Model Number: CH09
Place of Origin: Shenzhen China
Minimum Order Quantity: 1 Set
Price: USD 40-50000

Product Details


Frequency Range: 70MHz ~ 6GHz Detection Method: Spectrum+DID+RID
Match: Global IoT Card Response Time: 3 ~ 5s
Swarm Detection: ≥5 Battery Life: Battery Life
Dimensions: 185mm*80mm*33mm Weight: (650±10)g
Battery Capacity: 8000mAh Operating Time: 3~4 H
Storage Temperature: -35~40℃ Screen Size: 6-inch
Memory: 8GB
Highlight

Rainproof Handheld Drone Detector

,

Rainproof drone detection equipment

,

Early Warning Handheld Drone Detector

Product Description

Handheld Drone Detection Device
Supports spectrum detection + RID and DID positioning of drones. Portable design with rainproof feature
Key Specifications
Attribute Value
Frequency range 70MHz ~ 6GHz
Detection method Spectrum+DID+RID
Match Global IoT Card
Response time 3 ~ 5s
Swarm detection ≥5
Dimensions 185mm*80mm*33mm
Weight (650±10)g
Battery capacity 8000mAh
Operating time 3~4 h
Storage temperature -35~40℃
Screen size 6-inch
Memory 8GB
Product Overview

The CH09 Handheld Drone Locator is a portable device that integrates RF sensing, protocol decoding, and remote identification (RID) capabilities. It provides real-time drone detection, flight path tracking, and precise positioning of both drones and their remote controllers.

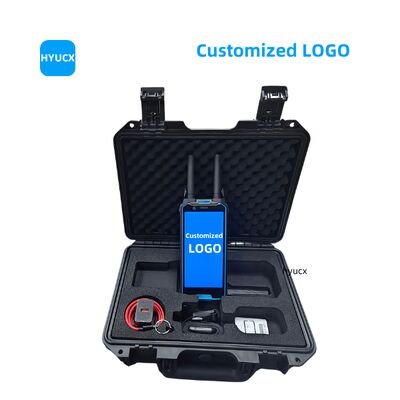

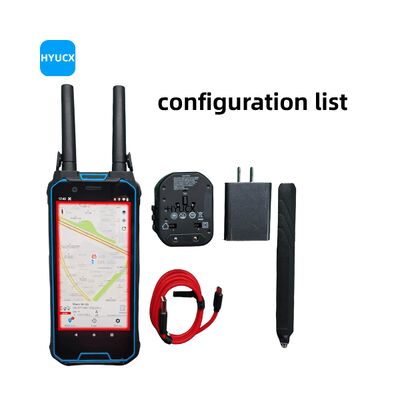

Components
NO Name Quantity Unit
1 Detection host 1 pcs
2 Detection antenna 2 pcs
3 Type-C charger 1 set

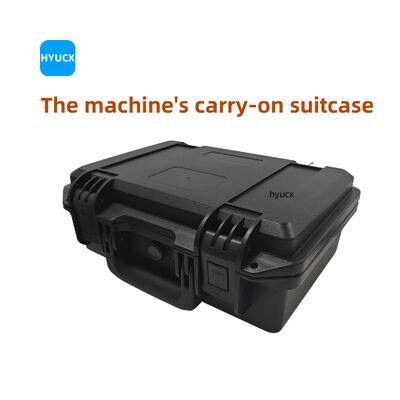

4 Case 1 set
Key Features
  • Drone positioning: Locates drones and displays them as icons on the e-map
  • Pilot positioning: Locates remote controllers (pilots) and displays their positions
  • Comprehensive drone database: Identifies over 700 types of drones including DJI, AUTEL, FPVs and DIY models
  • Pilot navigation: Plans routes for tracking drone controllers
  • RID detection: Identifies DJI drones (with OcuSync protocol) and drones with RID
  • Real-time information display: Shows drone model, coordinates, velocity, altitude, and pilot coordinates
  • Black and white list: Customizable alert settings for known drones
  • Early warning system: Audible and vibration alerts when drones are detected
  • Trajectory playback: Analyzes historical drone flight data
  • Multi-language support: English, Chinese, Russian, and Portuguese
Technical Specifications
Performance Index
NO Indicator Parameter
1 Frequency range 100MHz ~ 6GHz
2 Working range 0.5 ~ 1.5 km (Varies by environment and drone model)
3 Response time 3 ~ 5s
4 Swarm detection ≥5
Electrical Characteristics
NO Indicator Parameter
1 Battery capacity 8000mAh (Built-in lithium battery)
2 Operating time 3~4 h (Screen brightness at 20%, 25℃)
3 Charging duration ~3 h (With original charger)
Environmental Adaptability
NO Indicator Parameter
1 Operating temperature -25~40℃
2 Storage temperature -35~40℃

Product Highlights

Handheld Drone Detection Device Supports spectrum detection + RID and DID positioning of drones. Portable design with rainproof feature Key Specifications Attribute Value Frequency range 70MHz ~ 6GHz Detection method Spectrum+DID+RID Match Global IoT Card Response time 3 ~ 5s Swarm detection ≥5 ...
