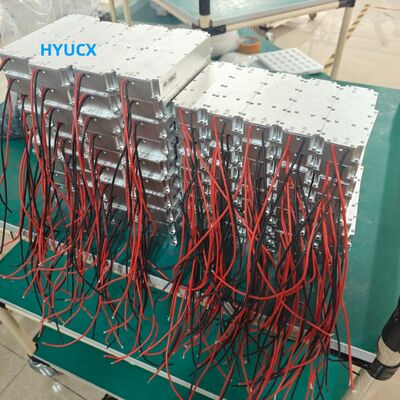

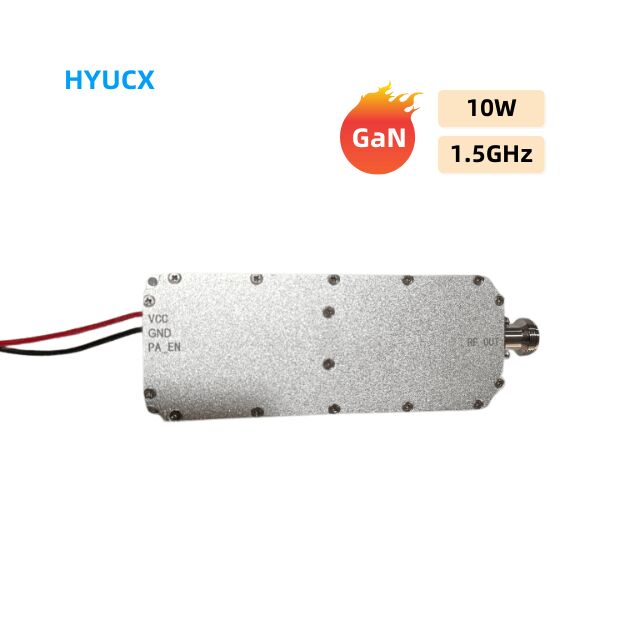

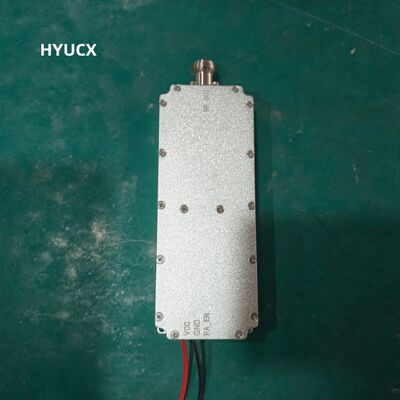

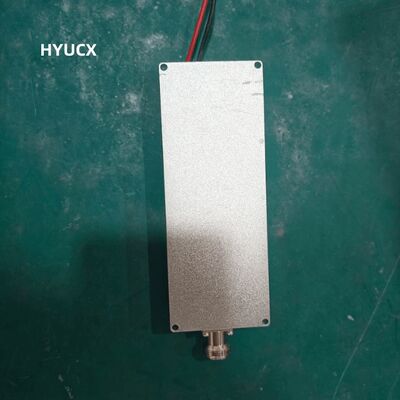

1.5GHz Anti Drone Module 10W Integrated High Detection Accuracy Rf Amplifier Module
Product Details
| Working Voltage: | 28V | Gain: | 38-40db |
|---|---|---|---|
| Output Power: | 40±0.5dbm | Output Port In SWR: | ≤1.30 |
| Highlight |
1.5GHz Anti Drone Module,1.5GHz drone jammer module,Integrated Anti Drone Module |
||
Product Description
| Test item | Metric | Unit | Remarks | ||
|---|---|---|---|---|---|
| frequency range |
2400-2500/1550-1 620/1180-1280/84 0-930/420-450 |
MHz |
With an efficient sweep source/Customizable frequency band |
||
| working voltage | 28 | V | / | ||
| gain | 38-40 | db | / | ||
| Output Power | 40±0.5 | dBm | 1. 1A | ||
| Output port in SWR | ≤1.30 | / |
No power supply, the grid points the test |
||
| High and low temperature test | Working environment temperature: (℃) | -40～+55 | ℃ | ||
| Power stability | 1.0 | dB | -40℃~+55℃ | ||
| Power supply requirements | ≥2A | / | A CW output of 20W | ||
| Power supply interface | Perform capacitive | / | Red and black line | ||
| Enable control | Have a choice | / | High open and low closed | ||
| The vibration requirements | / | / |
Meet the requirements of military on-board equipment |
||

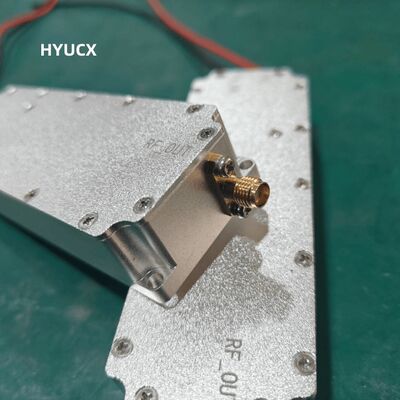

| The RF input / Output connector | SMA | / | Mother head | ||
| Size | 85.8*33.8*19.5 | mm | Excluding the SMA heads | ||
| Mounting Hole | 81.8*29.7 | mm | M 2.5*10 | ||
| Weight | 0.2 | Kg | / | ||
Product Highlights
Test item Metric Unit Remarks frequency range 2400-2500/1550-1 620/1180-1280/84 0-930/420-450 MHz With an efficient sweep source/Customizable frequency band working voltage 28 V / gain 38-40 db / Output Power 40±0.5 dBm 1. 1A Output port in SWR ≤1.30 / No power supply, the grid points the test High ...
