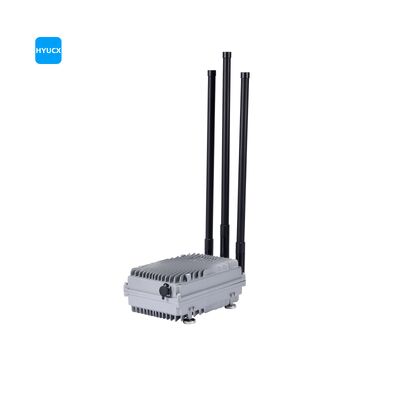

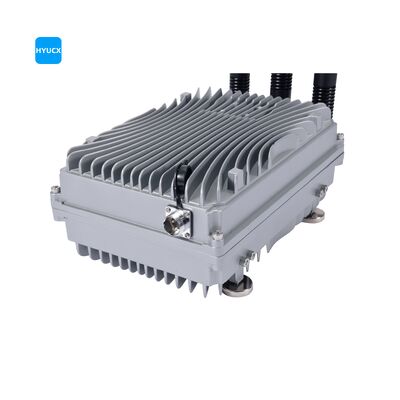

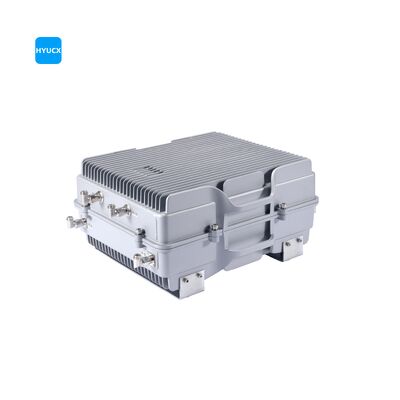

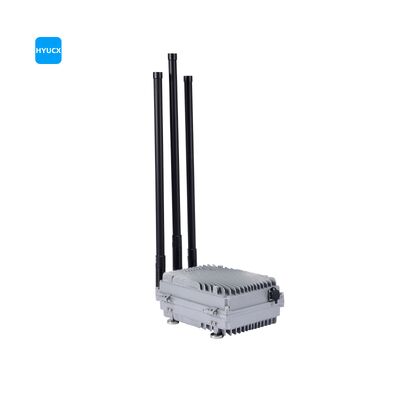

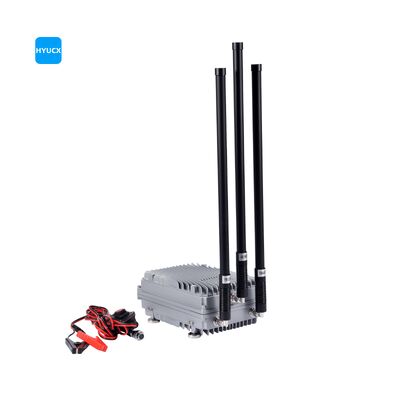

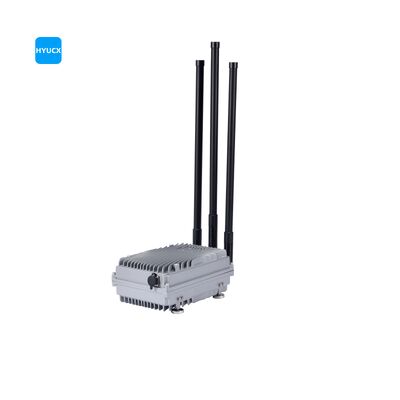

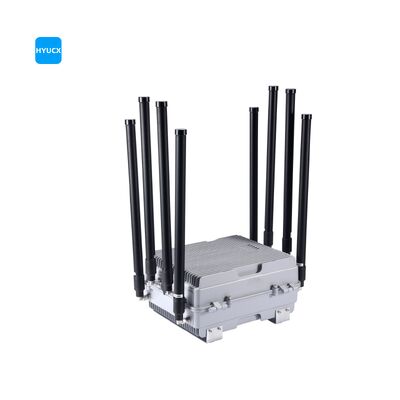

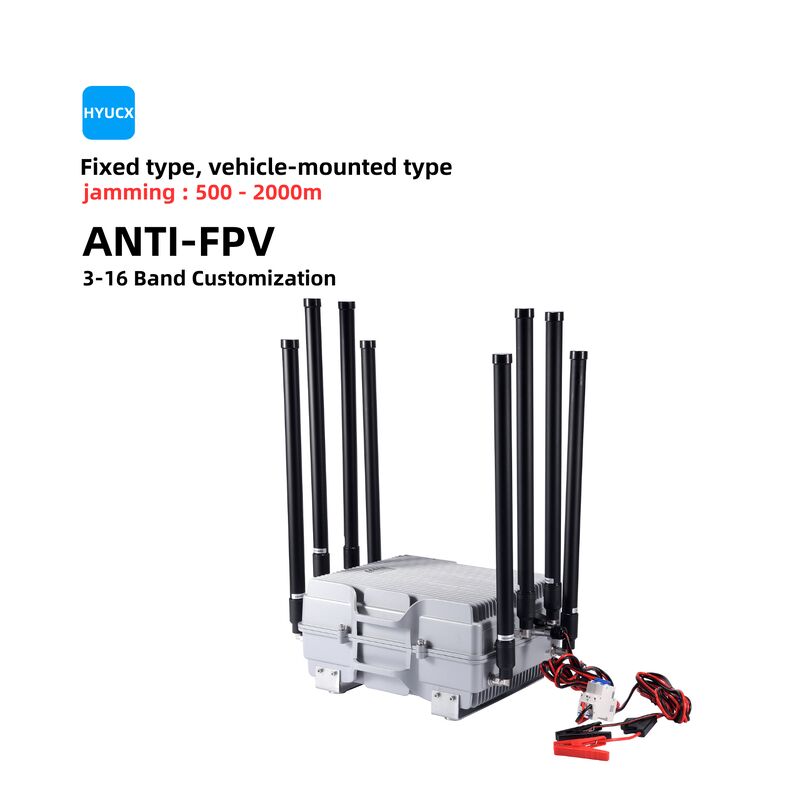

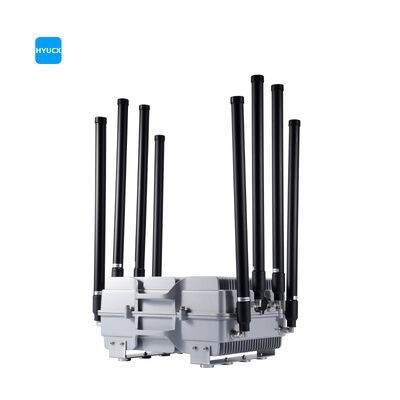

8 Channel UAV Interference Equipment With 100W Power Capacity For Defending Against FPV
Product Details
| Supply Voltage: | DC: +12V～+28V (battery Optional) | Power Consumption: | ≤785W |
|---|---|---|---|
| Efficiency: | ≥50% | Structural Dimensions: | 50*45*27CM |
| Weight: | ≤23kg | Power Capacity: | 100W |
| Highlight |
8 Channel UAV Interference Equipment,8 Channel anti drone devices,100W UAV Interference Equipment |
||
Product Description
Professional defense system against FPV drones with 8-channel jamming capability.
| Serial Number | Project | Operating Frequency | Output Power |
|---|---|---|---|
| 1 | Channel 1 | 220MHz～350MHz | 47dBm (50W) |
| Channel 2 | 350MHz～470MHz | 47dBm (50W) | |
| Channel 3 | 480MHz～600MHz | 47dBm (50W) | |
| Channel 4 | 600MHz～730MHz | 47dBm (50W) | |
| Channel 5 | 730MHz～910MHz | 47dBm (50W) | |
| Channel 6 | 910MHz～1100MHz | 47dBm (50W) | |
| Channel 7 | 2400MHz～2500MHz | 47dBm (50W) | |
| Channel 8 | 5750MHz～5880MHz | 47dBm (50W) | |
| 2 | Supply Voltage | DC: +12V～+28V (battery optional) | |
| 3 | Power Consumption | ≤785W | |
| 4 | Efficiency | ≥50% | |
| 5 | Structural Dimensions | 50*45*27CM | |
| 7 | Weight | ≤23kg | |
| 8 | Interface Type |
Power Interface: Aviation socket WS20-2
RF Interface: NJ impedance 50 ohms
|
|

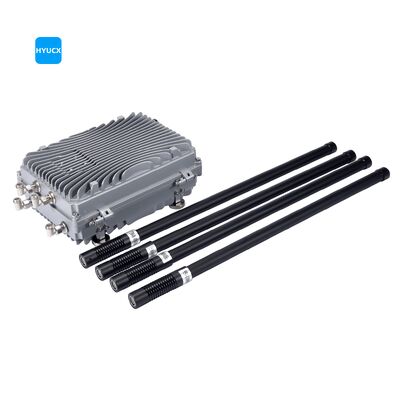

| 9 | Antenna | Omnidirectional fiberglass spring antenna | |
| 10 | Gain | 3±1dBi | |
| 11 | Power Capacity | 100W | |

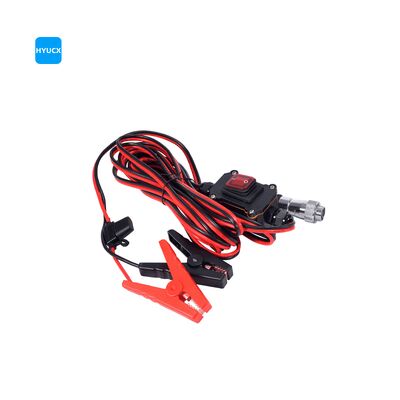

| 12 | Accessories | Power supply box with wire 1PCS, strong magnetic screws 8PCS, adapter 8PCS | |
