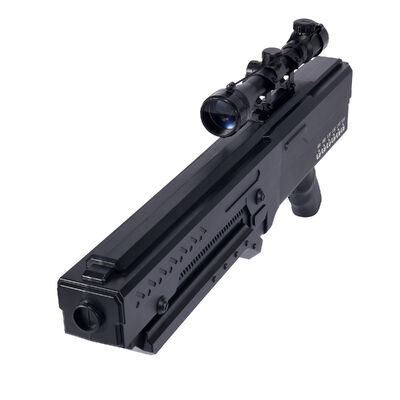

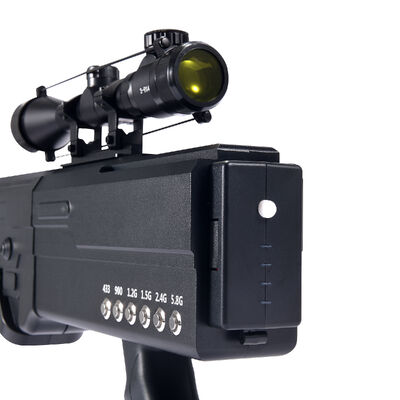

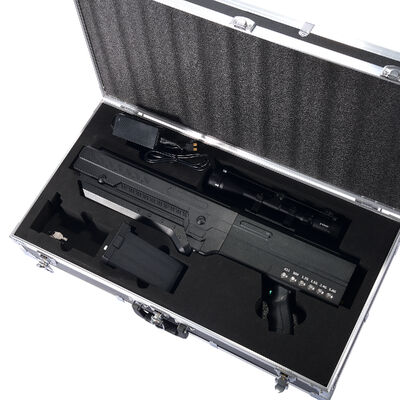

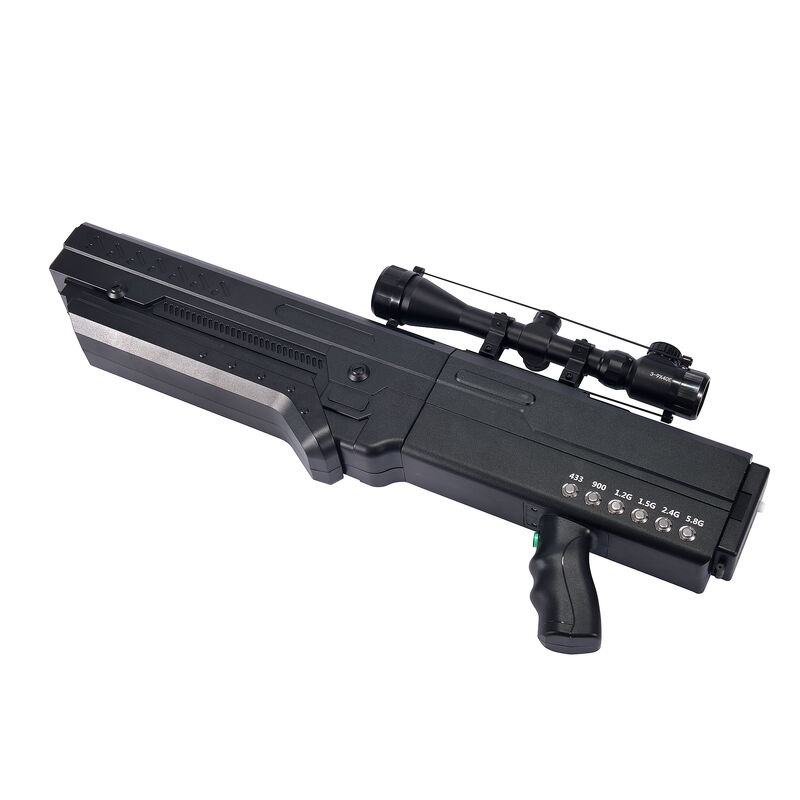

Long Range Uav Gun Jammer 1km Range Military Grade Anti Uav Jammer
Product Details
| Packaging Weight: | ≤16.5KG | Packing Size: | 830*490*195mm |
|---|---|---|---|
| Machine Weight: | ≤10KG | Structural Dimensions: | 840*300*80 Mm |
| Efficiency: | ≥50% | Power Consumption: | ≤300W |
| Supply Voltage: | DC: 28V (battery Powered) | ||
| Highlight |
Long Range Uav Gun Jammer,Long Range Anti Uav Jammer,Military Grade Anti Uav Jammer |
||
Product Description
| Serial number | project | Operating frequency | Output power | Remark | |
|---|---|---|---|---|---|
| 1 | Channel 1 | 430-450MHz | 40dBm (10W) | Handheld single soldier | |
| Channel 2 | 860-930MHz | 43dBm (20W) | |||
| Channel 3 | 1160-1280MHz | 43dBm (20W) | |||
| Channel 4 | 1560-1620MHz | 40dBm (20W ) | |||
| Channel 5 | 2380-2470MHz | 43dBm (30W) | |||
| Channel 6 | 5725MHz～5850MHz | 43dBm (30W) | |||
| Supply voltage | DC: 28V (battery powered) | ||||
| Power consumption | ≤300W | ||||
| 2 | efficiency | ≥50% | |||
| 3 | Structural dimensions | 840*300*80 mm | |||
| 4 | Machine weight | ≤10KG | |||
| 5 | Packing size | 830*490*195mm | |||
| 7 | Packaging weight | ≤16.5KG | |||
| 11 | antenna | type | CPB directional antenna | ||
| Gain | 1.5～3dBi | ||||
| 12 | Standing waves | ≤2.0 | |||
| 13 | Power capacity | 200W | |||
Product Highlights
Serial number project Operating frequency Output power Remark 1 Channel 1 430-450MHz 40dBm (10W) Handheld single soldier Channel 2 860-930MHz 43dBm (20W) Channel 3 1160-1280MHz 43dBm (20W) Channel 4 1560-1620MHz 40dBm (20W ) Channel 5 2380-2470MHz 43dBm (30W) Channel 6 5725MHz～5850MHz 43dBm (30W) ...
