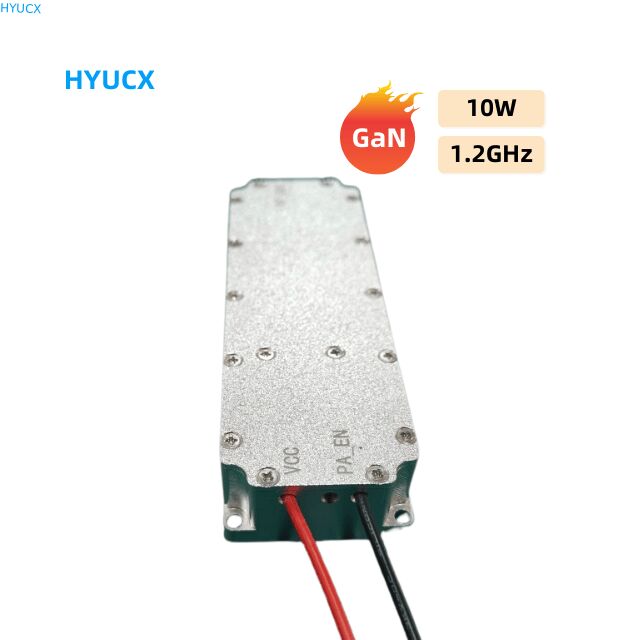

10W 1.2GHz Drone Jamming Modules Custom Signal Jammer Module With GaN Lora Technology
Product Details
| Gain: | Db | Output Power: | 40±0.5dBm |
|---|---|---|---|
| Output Port In SWR: | ≤1.30 | Size: | 85.8*33.8*19.5mm |
| Highlight |
10W drone jamming module,10W anti uav module,1.2GHz drone jamming module |
||
Product Description
| Test item | Metric | Unit | Remarks | |
|---|---|---|---|---|
| frequency range |
2400-2500/1550-1 620/1180-1280/84 0-930/420-450 |
MHz |
With an efficient sweep source/Customizable frequency band |
|
| working voltage |
28 |
V |
/ |
|
| gain |
38-40 |
db |
/ |
|
| Output Power |
40±0.5 |
dBm |
1. 1A |
|
| Output port in SWR |
≤1.30 |
/ |
No power supply, the grid points the test |
|
| High and low temperature test | Working environment temperature: (℃) |
-40～+55 |
℃ |
|
| Power stability |
1.0 |
dB |
-40℃~+55℃ |
|
| Power supply requirements |
≥2A |
/ |
A CW output of 20W |
|
| Power supply interface |
Perform capacitive |
/ |
Red and black line |
|
| Enable control |
Have a choice |
/ |
High open and low closed |
|
| The vibration requirements |
/ |
/ |
Meet the requirements of military on-board equipment |
|
| The RF input / Output connector |
SMA |
/ |
Mother head |
|
| Size |
85.8*33.8*19.5 |
mm |
Excluding the SMA heads |
|
| Mounting Hole |
81.8*29.7 |
mm |
M 2.5*10 |
|
| Weight |
0.2 |
Kg |
/ |
|
Product Highlights
Test item Metric Unit Remarks frequency range 2400-2500/1550-1 620/1180-1280/84 0-930/420-450 MHz With an efficient sweep source/Customizable frequency band working voltage 28 V / gain 38-40 db / Output Power 40±0.5 dBm 1. 1A Output port in SWR ≤1.30 / No power supply, the grid points the test High ...
