70-6200MHz Integrated Anti Drone Detection Video Transmission Interception Equipment
Product Details:
| Brand Name: | HYUCX |
| Model Number: | CH07 |
| Document: | CH07 specification 202511.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD 40-50000 |
| Packaging Details: | Factory packaging |
| Delivery Time: | 5-8 Days |
| Payment Terms: | TT DP |
|
Detail Information |
|||
| Identification Types: | Supports Mainstream Drones Such As DJI, Autel, Hubsan, As Well As FPV Racing Drones And DIY Drones | Frequency Range: | Supports Customizable Scanning From 70 MHz To 6.2 GHz. Default Detection Bands: 400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz (other Bands Can Be Customized) |
|---|---|---|---|
| FPV Video Transmission Detection: | Supports Detection Of All Analog Video Transmissions Within The 500 MHz–6 GHz Frequency Range (user-customizable) | Detection Radius: | ≥ 1.5 Km (line-of-sight, Clean Electromagnetic Environment). |
| Video Capture Distance: | ≥ 1.5 Km (line-of-sight, Clean Electromagnetic Environment). | Video Storage Capacity: | 32 GB Memory Card |
| Detection Response Time: | ≤3s（8 Bands）；≤5s（12 Bands） | Alarm Modes: | Sound, Vibration, And Light |
| Screen Size: | 7-inch Touchscreen | Power Supply: | Powered By Lithium Battery |
| Battery Capacity: | 7000mAh | Device Weight: | ≤2kg |
| Device Size: | Length × Width × Height：200mm×130mm×40mm | ||
| Highlight: | Integrated Anti Drone Detection,6200MHz Anti Drone Detection,Integrated UAV detection equipment |
||
Product Description
1. Introduction
With the rapid development and popularization of drone technology, drones have shown great application potential in aerial photography, agriculture, rescue, security and other fields, but at the same time they have also brought increasingly serious safety risks. Incidents such as illegal intrusions, malicious reconnaissance, and privacy violations occur frequently, posing serious threats to national security, public safety, and personal privacy. Therefore, the development of efficient and advanced drone jamming technology has become an urgent need to maintain airspace security and ensure social stability.
2. Device Overview
The portable FPV detection and video transmission capture device integrates detection, video interception, and video storage into one system. It features full-band detection, FPV analog video transmission detection, video interception, display control, and video storage functions. In complex electromagnetic environments, it can accurately identify quadcopters, fixed-wing drones, DIY models, and FPV drones, and provide sound, light, and vibration alarms. This device is suitable for scenarios such as routine patrols, critical target protection, unit-level operations, and investigation and evidence collection.
2.1 Device Name
CH07 portable FPV detection and video transmission capture device
2.2 Device Model
CH07
2.3 Device Usage
Incidents such as illegal intrusions, malicious reconnaissance, and privacy violations occur frequently through drones, posing a serious threat to national security, public safety, and personal privacy. Therefore, the development of efficient and portable drone countermeasures technology has become an urgent need to maintain airspace security and ensure social stability.
2.4 Device Technical Parameters
|
Number |
Name |
Specifications |
|
1 |
Identification types |
Supports mainstream drones such as DJI, Autel, Hubsan, as well as FPV racing drones and DIY drones |
|
2 |
Frequency range |
Supports customizable scanning from 70 MHz to 6.2 GHz. |
|
3 |
FPV video transmission detection |
Supports detection of all analog video transmissions within the 500 MHz–6 GHz frequency range (user-customizable) |
|
4 |
Detection radius |
≥ 1.5 km (line-of-sight, clean electromagnetic environment). |
|
5 |
Video capture distance |
≥ 1.5 km (line-of-sight, clean electromagnetic environment). |
|
6 |
Video storage capacity |
32 GB memory card |
|
7 |
Detection response time |
≤3s(8 bands)；≤5s(12 bands) |
|
8 |
Alarm modes |
Sound, vibration, and light |
|
9 |
Screen size |
7-inch touchscreen |
|
10 |
Power supply |
Powered by lithium battery |
|
11 |
Battery capacity |
7000mAh |
|
12 |
Device weight |
≤2kg |
|
13 |
Device size |
Length × Width × Height:200mm×130mm×40mm |
3. Device Features and Functions
Full-band detection: Capable of detecting the entire 70 MHz–6.2 GHz range.
Comprehensive FPV band coverage: Fully supports analog video transmission detection within the 500 MHz–6 GHz range.

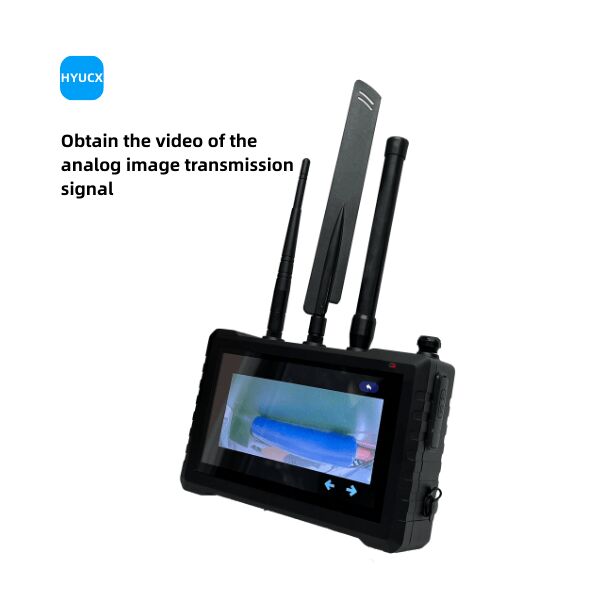

Video interception: Intercepts all analog video transmissions, allowing "first-person view" analysis of FPV intrusion targets and real-time dynamics.
Video storage: Real-time captured video can be stored as evidence.

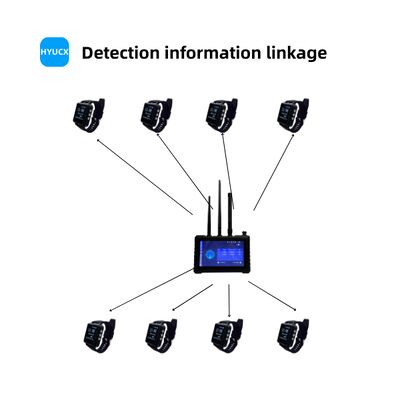

Team collaboration: Features a 1+N mode with master-slave device design, enabling alarm linkage and coordinated operations.
Portable design: Comes with a multifunctional wristband, supporting multiple carrying methods for ease of use.
4. Device Structure and Components

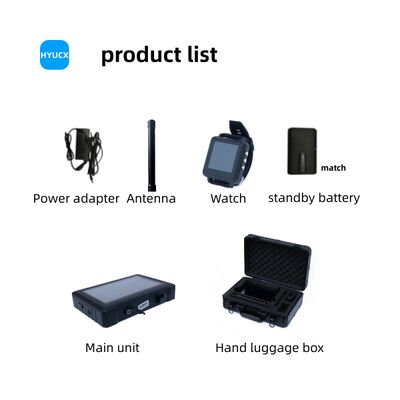

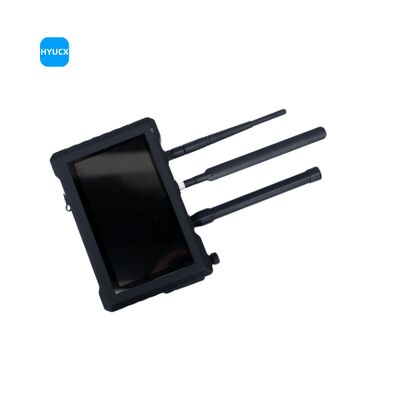

The DR400D portable FPV detection and video transmission capture device consists of antenna (*3) units, a radio detection module, a video interception module, a video storage unit, a main housing, and a power component.
