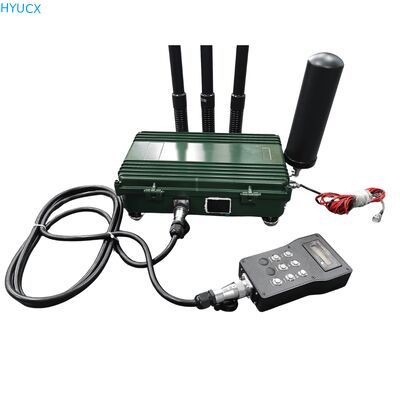

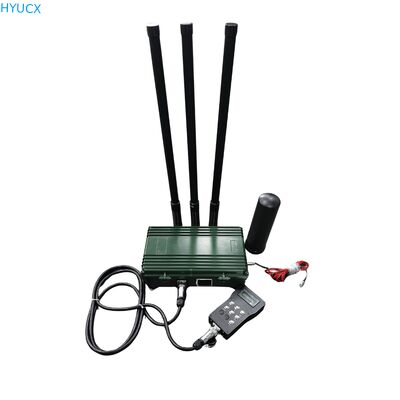

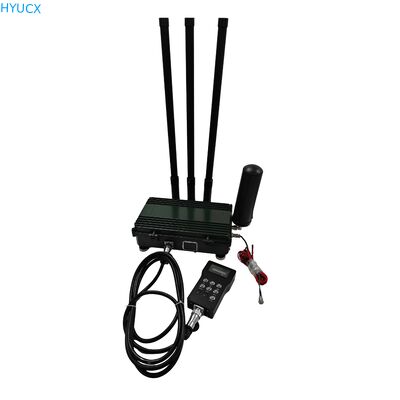

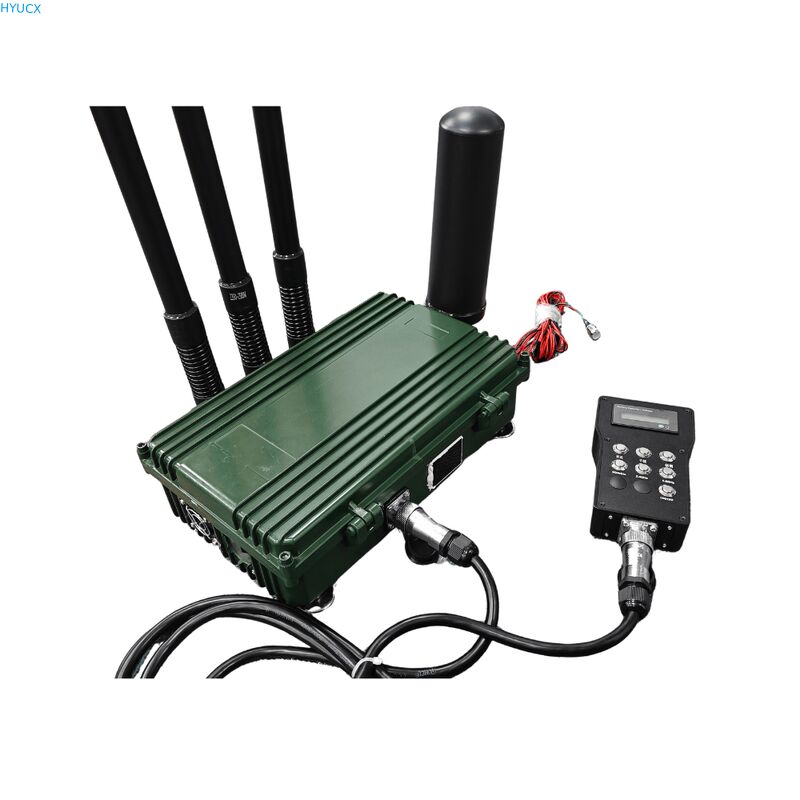

70MHz-6GHz Anti Drone System Remote Control Intelligent Customized Uav Defense System
Product Details
| Detection Band: | 0-8G | Jammer Band: | 1.2G 2.4G 5.8G MORE |
|---|---|---|---|
| Highlight |
Anti Drone System remote control,remote control drone jamming system,Intelligent drone jamming system |
||
Product Description
WS03-Detection Unmanned Aerial Vehicle Defense System & Equipment Specifications
Product Introduction
The drone detection and countermeasure system consists of detection equipment, countermeasure equipment, and software. The system detects drone signals in the 70MHz-6GHz frequency band via radio spectrum and automatically activates the countermeasure band to defend against and attack the drone. The countermeasure band and power level can be customized to meet customer needs, with power support of 30W, 50W, 75W, and 100W, and frequency band support of 10MHz-6000MHz.
Technical parameters
|
Serial Number |
project |
Operating frequency |
Output power |
|
|
|
Channel 7 |
1150MHz～1250MHz |
47dBm (50W) |
|
|
|
Channel 10 |
2400MHz～2500MHz |
47dBm (50W) |
|
|
|
Channel 12 |
5750MHz～5860MHz |
47dBm (50W) |
|
|
2 |
Power supply voltage |
AC 220V & 28V |
||
|
3 |
Power consumption |
300W-1200W |
||
|
4 |
efficiency |
≥50% |
||
|
5 |
Countermeasure equipment size |
~40*25*18cm |
||
|
6 |
Detection device size |
~40*25*18cm |
||
|
7 |
Flight case size |
~60*40*30cm |
||
|
8 |
weight |
≤15KG |
||
|
9 |
Detection methods |
Spectrum detection |
||
|
10 |
Detection frequency band |
0-8000MHz |
||
|
11 |
interface type |
Power interface |
Aviation Socket WS20-3 |
|
|
RF interface |
NJ impedance 50 ohms |
|||
|
12 |
antenna |
type |
Omnidirectional fiberglass spring antenna |
|
|
13 |
Gain |
3±1dBi |
||
|
14 |
Power capacity |
100W |
||
|
15 |
Configuration |
Detection of countermeasures: host, connection cable, handle, antenna |
||
