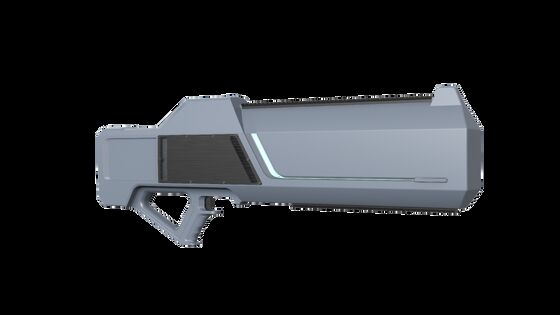

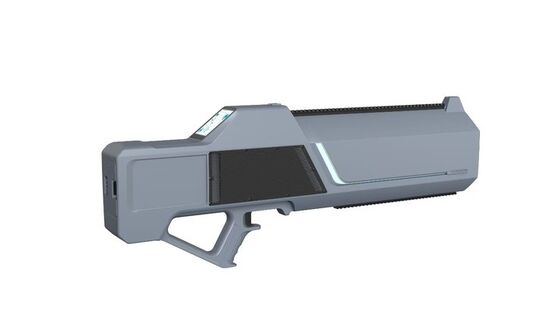

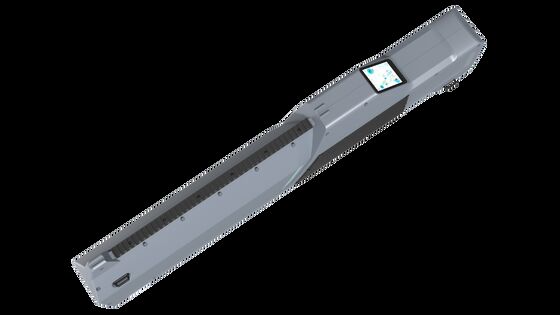

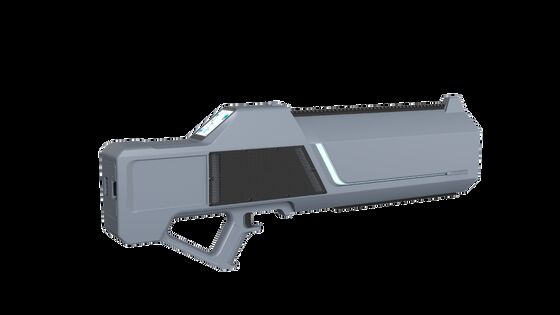

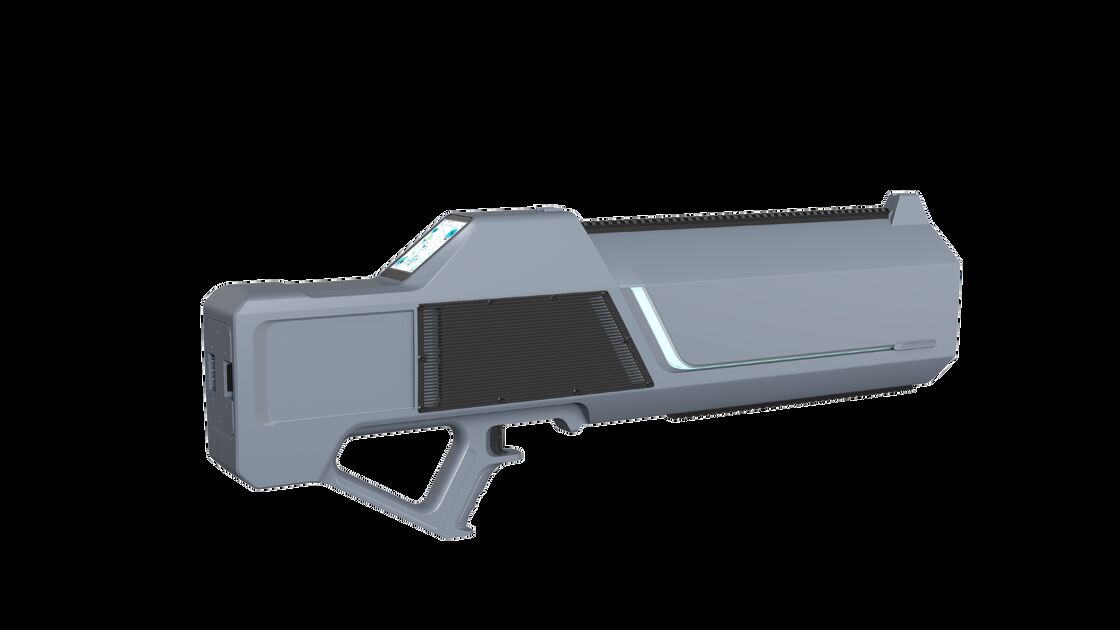

Handheld Anti Drone Gun 1-3km Distance 2.4GHz 5.8GHz Quick Response Wireless Signal Jammer

Appearance and mechanical structure inspection:

1. The appearance should be neat and tidy, with no rust, mildew, stains, peeling of coating, obvious scratches or burrs on the surface; the words, symbols, signs and various displays should be clear;
2. The structural parts and control keys should be intact and free of mechanical damage. The operation of switches, buttons and knobs should be flexible and reliable without obstruction, and the parts should be tight and not loose. The power supply fuse of the equipment should be placed on the front panel for easy inspection and replacement.

Dimensions: Host size should be ≤ 880mm (length) * 100mm (width) * 330mm (height)

Weight: The weight of the host (including battery) should be ≤7kg

Status indicator: LED status indicator light, green in standby (detection) state, blue in interference emission state

Functional inspection: With a touch screen, it should be able to display the sample battery status, working status (detection/countermeasure), countermeasure mode (return/forced landing/enhancement), detection results (message/spectrum) and other information

Detection frequency band: It should be able to detect drone signals with working frequency bands of 2.4GHz and 5.8GHz

Detection function: When the spectrum detection module of the sample detects a drone, it should be able to display the drone’s operating frequency, number of occurrences, approximate model, and other information in the detection list.

Drone positioning function: When the sample's message cracking module detects a drone, it should be able to display the model, longitude and latitude, distance, azimuth and other information of the drone and remote controller (pilot) in the message list, and display the drone location icon

Signal strength display function: After entering the direction finding mode, the signal strength of the corresponding drone signal in the current direction should be displayed

Equipment positioning function: The sample should be able to access the wireless network through a 4G network card for positioning, and the location information can be uploaded to the management and control platform

Network linkage function: multiple devices can be connected to the control platform at the same time, and the location, online status, transmission status and other information of the connected devices can be displayed on the control platform.

Detection and positioning distance: Under the condition of no obvious obstruction and no obvious electromagnetic interference, the maximum distance that the sample can detect and locate the drone should be ≥1km

Detection angle: horizontal direction: 0°～ 360°

Detection time: The time from the start of detection to the touch screen displaying the detection results should be ≤ 5s

Number of simultaneous detections: The number of drones that can be detected simultaneously should be ≥ 15

Countermeasure function: It has the functions of driving away and forced landing. It should be able to interfere with the image transmission link, flight control link and navigation signal of the drone through signal interference, drive away the drone or force the drone to land (the drone needs to support forced landing or return function)

Countermeasure frequency band: Channel 1: (840-930) MHz; Channel 2: (1550-1620) MHz; Channel 3: (2400-2500) MHz; Channel 4: (5150-5350) MHz; Channel 5 : (5725-5850) MHz

Countermeasure distance: Under the condition of no obvious shielding and no obvious electromagnetic interference, the countermeasure distance of the sample to the drone should be ≥1.5km

Interference ratio: When effectively driving away or forcing a DJI Mavic 2 drone to land , the maximum ratio between the drone and the sample and the distance between the drone and the remote controller should be no less than 10:1

Reverse angle: horizontal direction should be ≥30°

Countermeasure response time: Under the condition of no obvious shielding and no obvious electromagnetic interference, the time from the sample turning on the countermeasure to the loss of the drone signal should be ≤5s

Simultaneous interference quantity: The number of drones that can be interfered with simultaneously should be ≥ 15

Power supply: It should be powered by a lithium battery, which is removable

Continuous working time:

1. Powered by lithium battery, when the battery is fully charged and the battery is not replaced, the continuous detection time of the sample should be ≥10h ;
2. Powered by lithium battery, the continuous interference time of the sample should be ≥30min when the battery is fully charged and the battery is not replaced.

Operating Temperature:

1. High temperature: (60±2)℃, 4h, the function should be normal during the test;
2. Low temperature: (-20±2)℃, 4h, the function should be normal during the test
