14 Channel Drone Jamming Equipment Customized Frequency 100W Signal Blocker
Product Details:
| Brand Name: | HYUCX |
| Model Number: | JM01-14 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD 40-50000 |
| Packaging Details: | Factory packaging |
| Delivery Time: | 5-8 Days |
| Payment Terms: | TT DP |
|
Detail Information |
|||
| Band: | 14rod | Power: | 100W*14 |
|---|---|---|---|
| Highlight: | 14 Channel Drone Jamming Equipment,14 Channel drone jamming device,100W Drone Jamming Equipment |
||
Product Description
- The frequency band is customized according to customer requirements.
- The power is 100W.
-
6,Countermeasure Equipment6.1 Product Appearance6.2 introduction

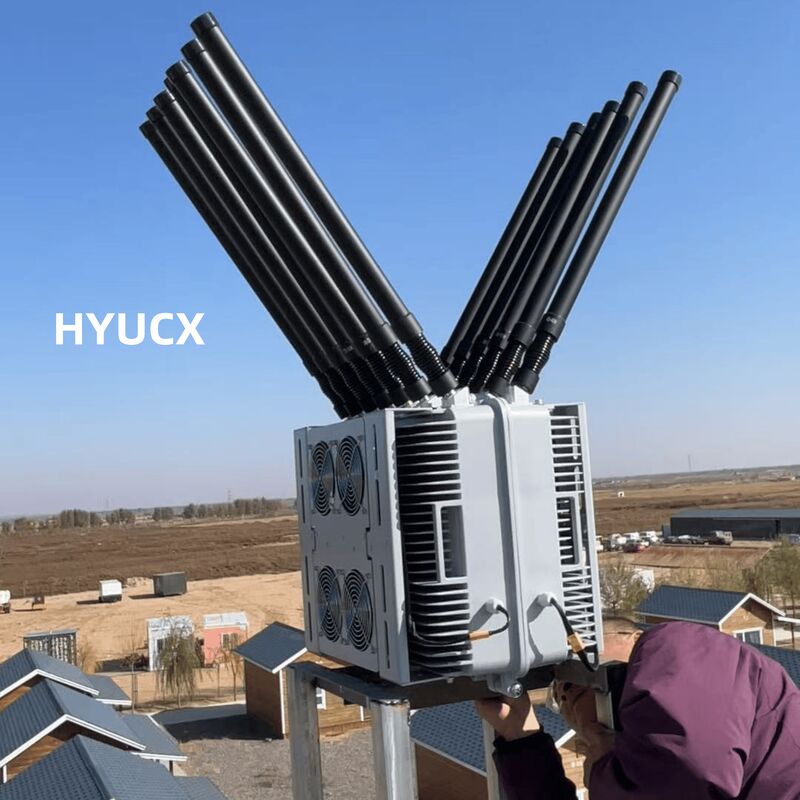

The fixed jamming box is specially designed for outdoor deployment and can be installed on poles or walls. It is sturdy and durable, and can maintain its operation effectively in various weather conditions, such as thunderstorms, heavy fog, and snow. The equipment can also switch between omnidirectional and directional jamming by replacing different types of antennas to meet diverse anti-drone requirements.
6.3 functional characteristicsFull-directional Switching: By changing the antenna type, the switching function between omnidirectional countermeasures and directional countermeasures can be achieved.
Multi-band Countermeasures: It can counteract the communication, video transmission, and navigation links of various unmanned aerial vehicles.
Fast Response: The system response time is no more than 30 seconds.
Low Failure Rate: The MTBF is not less than 1000 hours.
6.4 Jamming band:NO. band Power CH1 430-450MHz 50W Gan CH2 860-940MHz 50W Gan CH3 1170-1280MHz 50W Gan CH4 1360-1450MHz 50W Gan CH5 1500-1620MHz 50W Gan CH6 2400-2500MHz 100W Gan CH7 5150-5350MHz 100W Gan CH8 5715-5860MHz 100W Gan 6.5 Technical specificationDistance ≤3km size 350mm*190mm*490mm weight 18kg power 220V / 2.36A antenna Quantity:8 length:<600mm power supply mode AC110V-220V system protection Temperature protection, standing wave protection cooling system Built-in intelligent cooling system charge mode External 4A charger
