100MHz Handheld Drone Detector Accurate Lightweight With Long Battery Life

• CH09 Pro Handheld Drone Locator
• Specifications v1.1
• 1. Overview
• 2. Components
• 3. Functions
• 4. Features
• 5. Parameter
• 5.1 Performance Index
• 5.2 Mechanical Parameters
• 5.3 Electrical Characteristics
• 5.4 Environmental Adaptability
• 5.5 Touch Screen
• 5.6 System Storage
• 5.7 Operating Environment

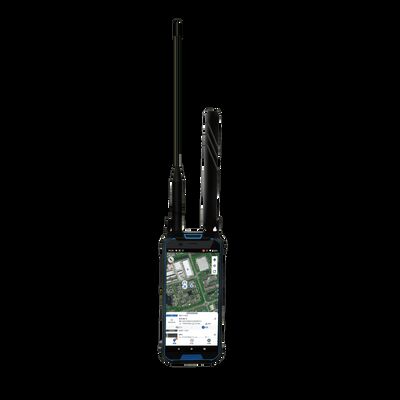

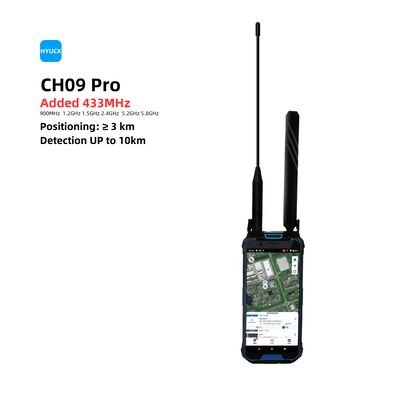

CH09 Pro is a new generation handheld drone detection and positioning device, enhancing the FPV drone detection capability. It can effectively detect low-frequency racing drones and decode their first-person flight perspective images.

This product integrates drone spectrum detection, protocol analysis, RID identification, and other regulatory functions into one unit, with a portable single-unit weight of approximately 650g. It can achieve real-time detection and early warning for the 900 series drones, accurately locating and tracking common drones and their operators (remote controllers). The design is compact and lightweight, easy to carry, with long battery life, and can be used in various low-altitude security operations.

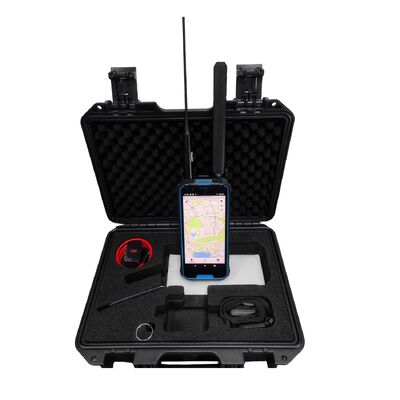

The hardware (accessories) of this product is composed as shown in the following table:

1. Drone positioning^[1]:Locates the drones and shows the results as icons of drones on the e-map.
2. Pilot positioning^[2]:Locates the remote controllers (pilots), and shows the results as icons of the remote controllers on the e-map.
3. Vast drone data library^[3]:Identifies over 700 types of drones, including DJI, AUTEL, FPVs and DIY drones.
4. FPV detection: capable of detecting and identifying homemade racing drones, real-time analysis of their first-person flight footage.
5. Pilot navigation^[4]: CH09 Pro plans the route for tracking drone controllers with easy operation.
6. RID detection^[5]:CH09 Pro is able to identify DJI drones (with OcuSync protocol), drones with RID, and the unique serial number (SN) of WIFI drones.
7. Comprehensive information^[6]:Realtime display of the drone model, coordinates, velocity, altitude, pilot coordinates and so on.
8. Black and white list^[7]:Once a white list is set, the alarm of CH09 Pro will not be set off if the drone in white list is detected.
9. Early warning:The device will alarm by beeping or vibrating when detects the drone.
10. Trajectory playback: Assists security personnel to analyze historical drone flight data.
11. History records:The detection results will be saved for review, including SN, model, frequency band, etc.
12. Multiple languages:Supports English, Chinese, Russian, and Portuguese.

Notes

[1]-[7]: Only applies to DJI series with OcuSync protocols.

[5]: GB 42590-2023, ASTM F3411 Remote ID, ASD-STAN prEN 4709-002.

1. Racing drone detection: Newly upgraded low-frequency FPV detection capability, which can cover the frequency bands of most homemade racing drones.
2. Image demodulation: Real-time parsing of the first-person view (FPV) flight footage of FPV drones, with clearer image demodulation.
3. Portable and easy to use: When detecting and positioning common drones such as DJI and Autel, this device can operate normally without an external antenna, making it more portable and user-friendly.
4. Comprehensive regulatory coverage: Capable of detecting over 900 types of drones, including DJI (including O4), Autel, Feimi, etc.
5. Networking and interconnection: Can be connected to the low-altitude management platform to realize multi-device linkage and intelligent unified dispatching management of security zones.
6. Mobile and portable: The device weighs only ~658g, is portable for individual soldiers, and can be used immediately after being turned on.
