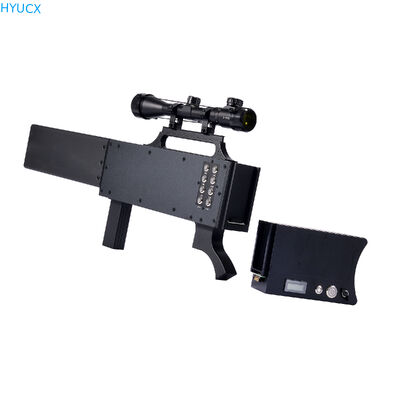

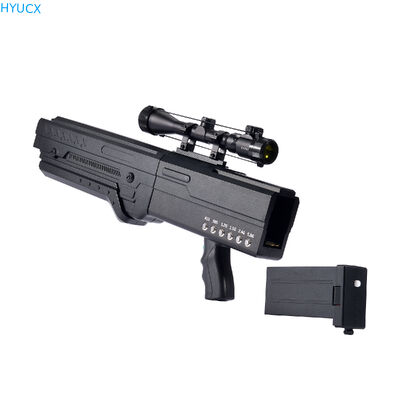

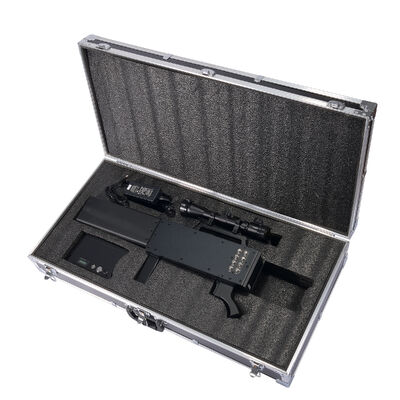

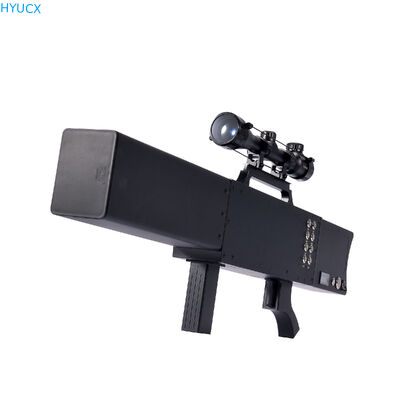

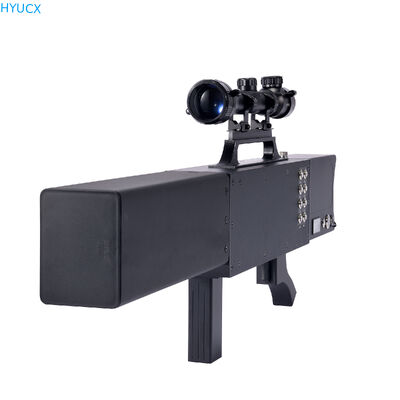

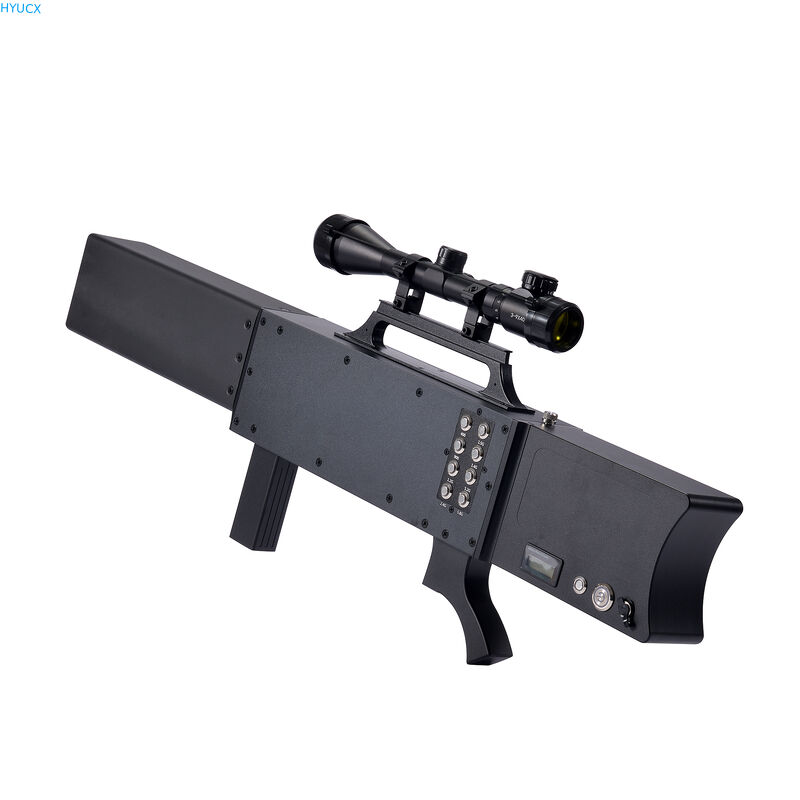

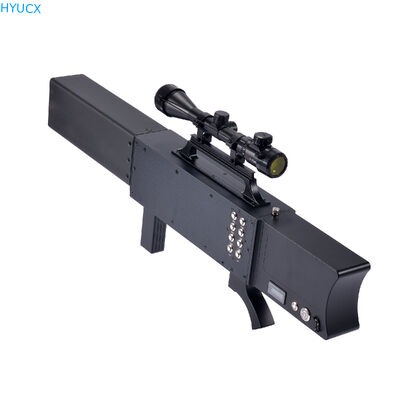

Portable Drone Jammer Gun 28V 300W 8 Channel Anti Drone System
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HYUCX |
| Model Number: | LS05-8 |
| Document: | Eight-channel jammer gun pr...ns.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD 40-50000 |
| Packaging Details: | Factory packaging |
| Delivery Time: | 5-8 Days |
| Payment Terms: | TT DP |
|
Detail Information |
|||
| Supply Voltage: | DC: 28V (battery Powered) | Power Consumption: | ≤300W |
|---|---|---|---|
| Efficiency: | ≥50% | Structural Dimensions: | 870*340*85 Mm |
| Machine Weight: | ≤6.5KG | Packing Size: | 830*490*195mm |
| Packaging Weight: | ≤18KG | ||
| Highlight: | Portable Drone Jammer Gun,8 Channel Anti Drone System,8 Channel Drone Jammer Gun |
||
Product Description
LS0-8 Drone Jamming Gun for Anti-Drone
Eight-Channel UAV Jammer Specification Sheet
Single soldier portable anti-drone solution with gun form factor.
Technical Parameters
| Serial Number | Project | Operating Frequency | Output Power | Remark |
|---|---|---|---|---|
| 1 | Channel 1 | 430-450MHz | 40dBm (10W) | Power can be customized |
| Channel 2 | 860-930MHz | 43dBm (20W) | Power can be customized | |
| Channel 3 | 1160-1280MHz | 43dBm (20W) | Power can be customized | |
| Channel 4 | 1360-1450MHZ | 40dBm (10W) | Power can be customized | |
| Channel 5 | 1560-1620MHz | 40dBm (10W) | Power can be customized | |
| Channel 6 | 2380-2470MHz | 43dBm (20W) | Power can be customized | |
| Channel 7 | 5150-5300MHz | 43dBm (20W) | Power can be customized | |
| Channel 8 | 5725MHz～5850MHz | 43dBm (20W) | Power can be customized |
Supply voltage:
DC: 28V (battery powered) - Handheld single soldier
Power consumption:
≤300W
Efficiency:
≥50%
Structural dimensions:
870*340*85 mm
Machine weight:
≤6.5KG
Packing size:
830*490*195mm
Packaging weight:
≤18KG
Antenna Specifications
Type:
CPB directional antenna
Gain:
1.5～3dBi
Standing waves:
≤2.0
Power capacity:
200W
