Waterproof Portable Drone Detector 5km Range Drone Detection Box With 10.1 Inches Screen
Product Details
| Detection Mode: | Spectrum + RID + DID | Detecting Distance: | 5km, Up To 10km |
|---|---|---|---|
| Drone Swarm Detection: | ≥5 Drones | Detection Result Refresh Time: | 4~6s |
| Frequency: | 900M、1.2G、2.4G、5.2G、5.8GHz、433MHz（match） | Location Error: | ≤10m |
| Weight: | ≤18kg | Size: | (520mm*415mm*224mm)±2mm |
| Storage Temperature: | -40~70℃ | Screen Size: | 10.1 Inches |
| Waterproof: | IP65 Case Closed | ||
| Highlight |
Waterproof Portable Drone Detector,Waterproof drone detection box,5km Range Portable Drone Detector |
||
Product Description

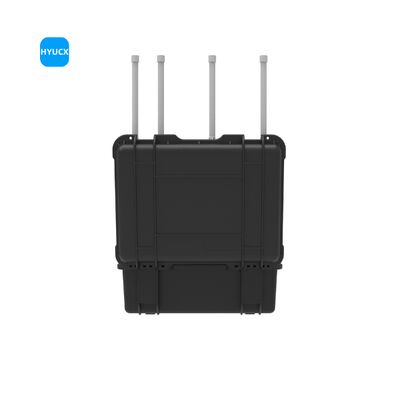

The CH11 is a portable drone monitoring platform designed for detection, identification, location, and tracking of drones and pilots. Ideal for major events, security patrols, VIP protection, and critical infrastructure security.
- Detects drones up to 5km away with location capability within 3km
- Works offline or online with multi-device networking options
- Highly portable suitcase design for rapid deployment
| # | Components | Quantity | Unit |
|---|---|---|---|
| 1 | CH11 device | 1 | pcs |
| 2 | Removable battery | 2 | pcs |
| 3 | Power adapter | 1 | pcs |
- Detection & Identification: Recognizes major brands (DJI, AUTEL) plus WiFi drones, FPVs, and some DIY models
- Real-time Tracking: Displays drone trajectories on GIS maps with pilot position tracking
- Detailed Monitoring: Shows drone ID, frequency, coordinates, model, altitude, and pilot distance
- Security Features: Black/white list identification, intrusion alarms, and drone swarm tracking (up to 5 simultaneously)
- Data Management: Historical playback, query by time period, statistics, and multi-device data merging
- Compact suitcase design with 18kg weight
- Passive detection (no signal emission)
- Dual-power supply (battery/external) with ≥4h operation

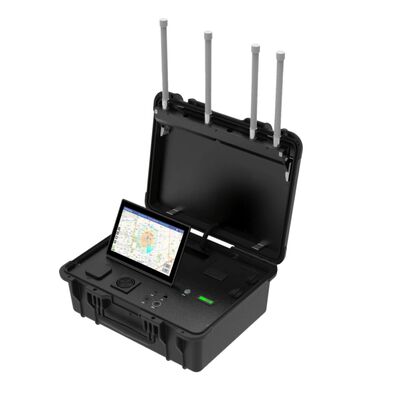

- 10.1" touchscreen (1080P) with intuitive interface
- IP65 waterproof rating when case closed
- Quick deployment (≤120s) with self-diagnosis
| # | Index | Parameter |
|---|---|---|
| 1 | Detection Range | 1-10km radius (environment dependent) |
| 2 | Frequency Bands | 900M, 1.2G, 2.4G, 5.2G, 5.8GHz |
| 3 | Altitude Range | 0-1000m |
| 4 | Location Accuracy | ≤10m error |

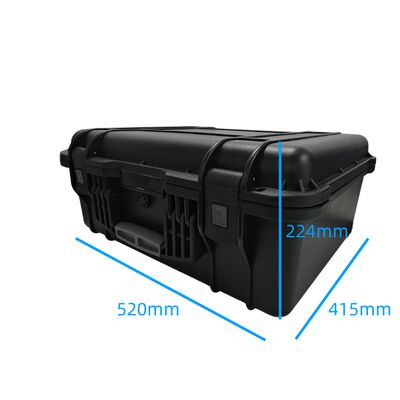

| Dimensions | 520×415×224mm (closed) |
| Weight | ≤18kg (without adapter) |
| Operating Temp | -20°C to 65°C |
- Meets GB/T 17626 EMC standards (Level 3 severity)
- Complies with GB 16796-2009 safety requirements
- Electromagnetic environment meets GB 8702-2014 public exposure limits
