High-Power 32-Channel Vehicle-Mounted Drone Defense System for 360° Protection

With the widespread adoption of drone technology, unauthorized intrusions and malicious surveillance in no-fly zones and around sensitive facilities have surged, posing severe threats to public safety and critical assets. Traditional single-point defense equipment often suffers from limited coverage and slow response times, making it inadequate against complex, multi-directional threats. The market urgently demands a vehicle-mounted anti-drone solution capable of 360-degree coverage, high-power suppression, and rapid deployment.

The customer required a rapidly deployable mobile defense system to protect large-scale outdoor events, border patrols, and critical convoy security. Core application requirements included:

• Omnidirectional Coverage: Simultaneous response to drone threats from any direction without blind spots.
• High-Power Suppression: Sufficient output power to effectively jam and force-land target drones at long ranges.
• Mobility & Rapid Deployment: Vehicle-mounted design enabling quick relocation based on mission needs.

To meet the customer’s strict demands for omnidirectional defense and mobility, we delivered the WS26-32 vehicle-mounted 32-channel directional drone jamming system:

• 360-Degree Defense Architecture: The system integrates 32 independent jamming modules with antenna arrays precisely oriented toward four cardinal directions, with 8 channels per direction, ensuring seamless, all-around airspace coverage with zero blind spots.
• Powerful Jamming Capability: Each channel delivers 47dBm (50W) output power with total power consumption under 2800W, achieving an effective jamming range exceeding 2 kilometers. The system supports multiple frequency bands from 220MHz to 5860MHz and can be customized to precisely cover mainstream drone remote control, video transmission, and navigation frequencies.

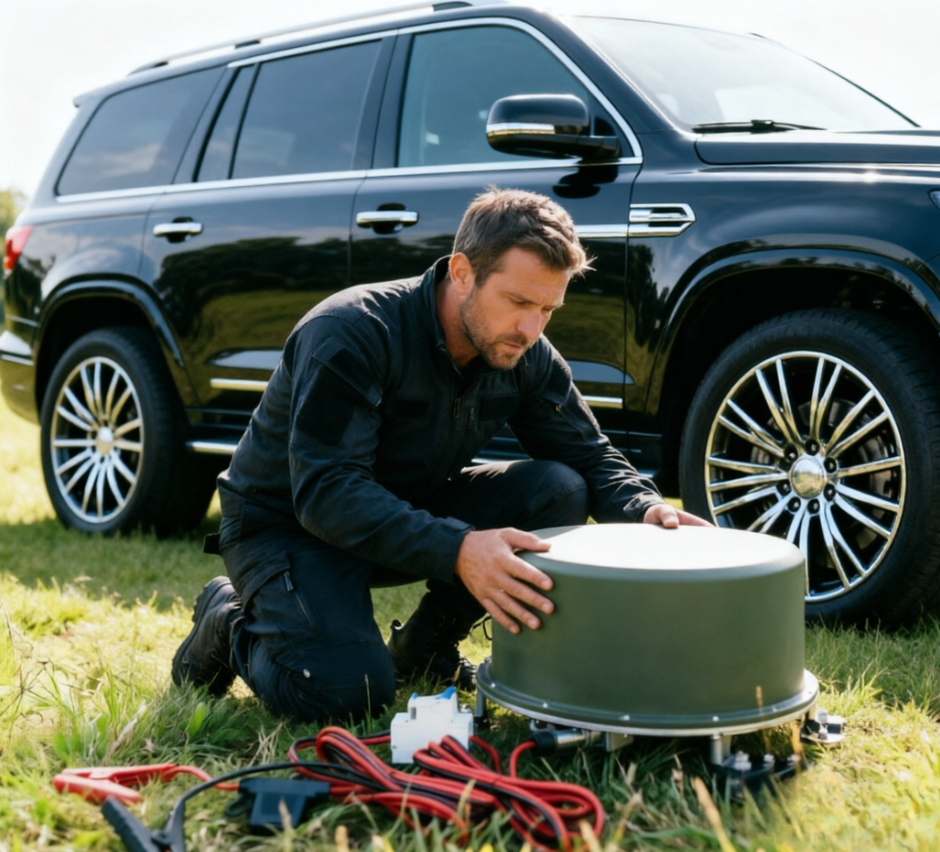

• Vehicle-Mounted Mobility: Housed in a rugged fiberglass enclosure measuring 565×565×300mm and weighing under 16KG, the system is purpose-built for vehicle installation. Powered by DC 28V vehicle power with aviation-grade connectors and air switches, it ensures stable operation and safe handling in mobile environments.
